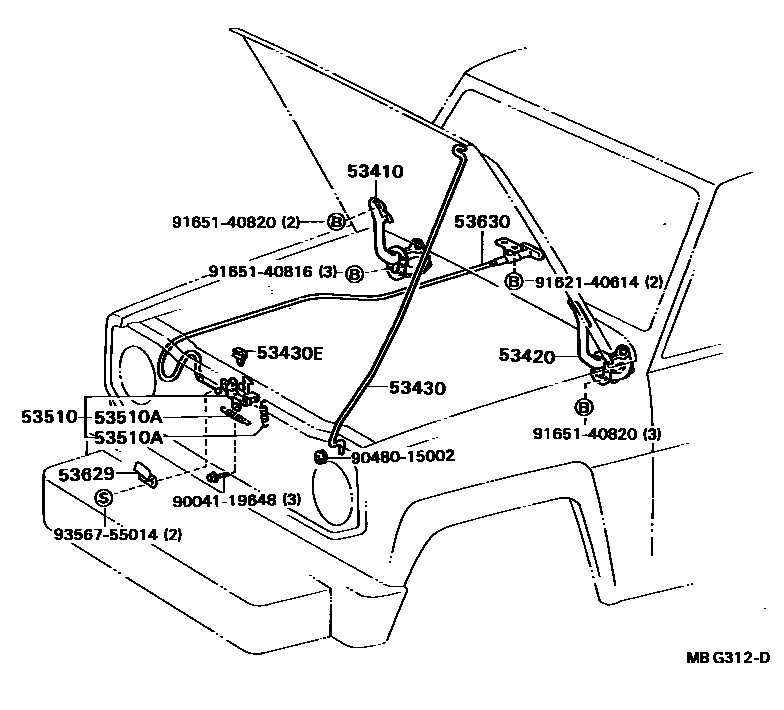

Toyota BLIZZARD — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-87602i198405-199002

53420HINGE ASSY, HOOD, LH

main53420-87602i198405-199002

53430SUPPORT ASSY, HOOD

main53441-87601i198405-199002

53430ECLAMP, HOOD SUPPORT

main53455-87101i198405-199002

53510LOCK ASSY, HOOD

main53510-87603i198405-198810

main53510-87607i198810-199002

53510ASPRING, TENSION(FOR HOOD LOCK)

main90045-06216i198810-199002

CW=21,WD=0.9

main90045-06220i198810-199002

CW=45,WD=0.9

main90506-09008i198405-198810

main90506-09012i198405-198810

CW=45,WD=0.9

53629COVER, HOOD LOCK CONTROL CABLE

main53629-87601i198405-199002

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-87603i198405-198605

main53630-87604i198605-199002

9004119648

main90041-19648

9048015002

main90480-15002

9162140614

main91621-40614

9165140816

main91651-40816

9165140820

main91651-40820

9356755014

main93567-55014

14 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota BLIZZARD

This section contains 14 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota BLIZZARD. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, CLAMP, HOOD SUPPORT, LOCK ASSY, HOOD.
