Toyota BLIZZARD — HEATING & AIR CONDITIONING - COMPRESSOR

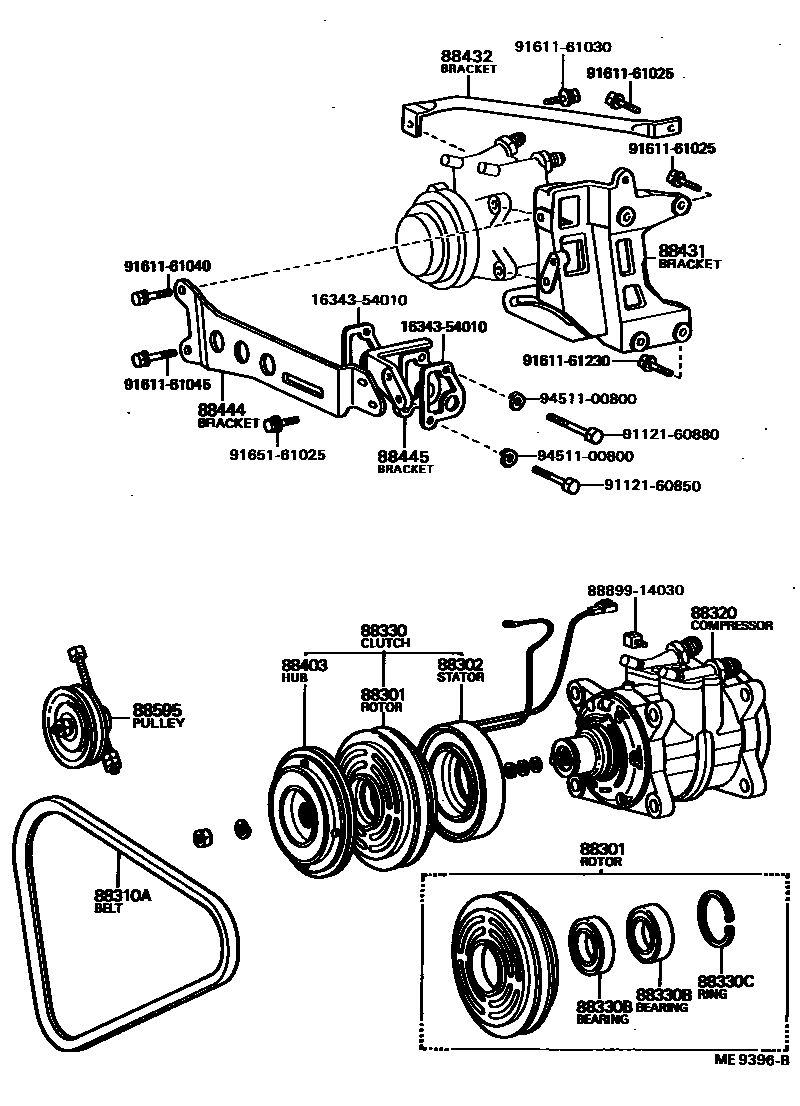

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12040i198003-198106

main88412-14010i198106-198110

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050i198106-198110

main88411-22040i198003-198106

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-01360i198110-198404

88320COMPRESSOR ASSY, COOLER

main88320-87602i198003-198110

88330CLUTCH ASSY, MAGNET

main88410-14090i198106-198110

main88410-22060i198003-198106

88330BBEARING, MAGNET CLUTCH

main90099-10117×2i198003-198106

main90099-10133×2i198106-198110

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094i198003-198106

main90099-07114i198106-198110

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030i198106-198110

main88403-26030i198003-198106

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-25020i198110-198404

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88433-25020i198003-198110

88444BRACKET, IDLE PULLEY

main88444-26040i198003-198110

88445BRACKET, IDLE PULLEY

main88444-26050i198003-198110

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-26030i198003-198110

1634354010GASKET, WATER OUTLET HOUSING

main16343-54010

8889914030COVER, EVAPORATOR

main88899-14030

9112160850

main91121-60850

9112160880

main91121-60880

9161161025

main91611-61025

9161161030

main91611-61030

9161161040

main91611-61040

9161161045

main91611-61045

9161161230

main91611-61230

9165161025

main91651-61025

9451100800

main94511-00800

24 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota BLIZZARD

This section contains 24 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota BLIZZARD. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1, COMPRESSOR ASSY, COOLER, CLUTCH ASSY, MAGNET.
