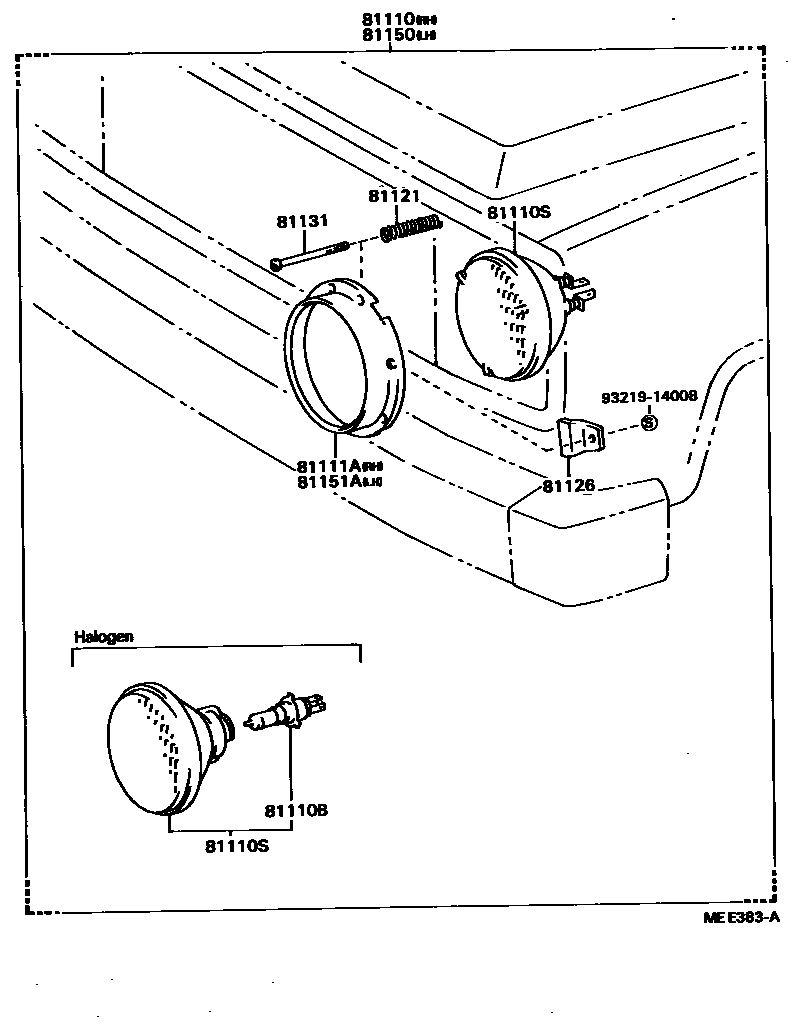

Toyota BLIZZARD — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-87628i198709-198911

12V 60/55W,HALOGEN

main81110-87634i198709-199002

12V 60/55W,HALOGEN YELLOW

main81110-87696i198405-198509

12V 50/40W

main81110-87698i198405-198709

12V 60/55W,HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90049-02022×2i198709-199002

12V 60/55W,HALOGEN YELLOW

main90049-51066×2i198709-198911

main90981-13015×2i198405-198504

81110SSEALED BEAM UNIT, NO.1

main90049-50028×2i198405-198509

12V 50/40W

main90049-50037×2i198405-198709

main90049-50059×2i198709-198911

12V 60/55W,HALOGEN

main90049-50065×2i198709-199002

12V 60/55W,HALOGEN YELLOW

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-87203i198405-198709

main81111-87703i198709-199002

81121SPRING, HEADLAMP TENSION

main81121-87602×6i198405-198709

81126PLATE, HEADLAMP

main81112-87701×4i198709-199002

main81115-87202×6i198405-198709

81131SCREW, HEADLAMP ADJUSTING

main81120-87705×6i198709-199002

main81131-87602×6i198405-198709

81150HEADLAMP ASSY, LH

main81110-87628i198709-198911

12V 60/55W,HALOGEN

main81110-87634i198709-199002

12V 60/55W,HALOGEN YELLOW

main81110-87696i198405-198509

12V 50/40W

main81110-87698i198405-198709

12V 60/55W,HALOGEN

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-87203i198405-198709

main81111-87703i198709-199002

9321914008

main93219-14008

10 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota BLIZZARD

This section contains 12 genuine Toyota parts for the HEADLAMP system of the Toyota BLIZZARD. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, SPRING, HEADLAMP TENSION.
