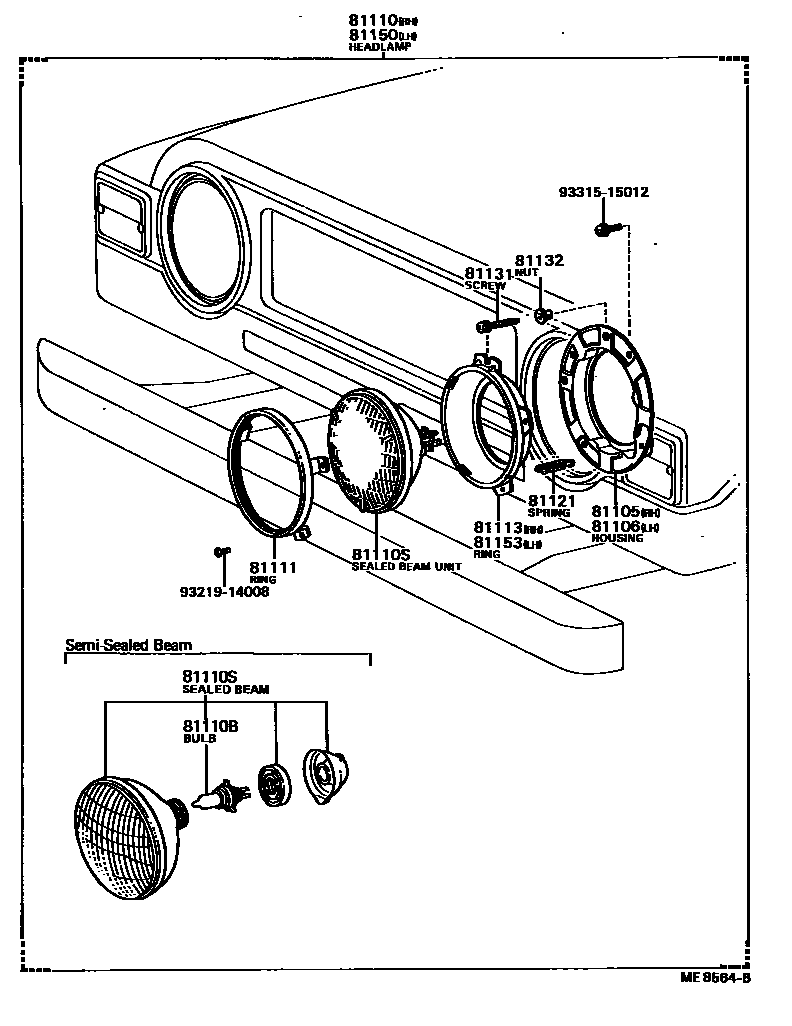

Toyota BLIZZARD — HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-87610i198003-198404

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81105-87610i198003-198404

81110HEADLAMP ASSY, RH

main81110-69195i198110-198404

HALOGEN

main81110-87610i198003-198404

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198110-198404

81110SSEALED BEAM UNIT, NO.1

main90049-50028×2i198003-198404

12V 50/40W

main90049-50029×2i198110-198404

12V 60/55W,HALOGEN

81111RING, SEALED BEAM RETAINING

main81111-12421×2i198003-198404

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10061i198003-198404

81121SPRING, HEADLAMP TENSION

main90045-06104×2i198003-198404

81131SCREW, HEADLAMP ADJUSTING

main81131-16010×4i198003-198404

81132NUT, HEADLAMP SELF LOCKING

main90041-89003×4i198003-198404

81150HEADLAMP ASSY, LH

main81150-69195i198110-198404

HALOGEN

main81150-87606i198003-198404

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-10021i198003-198404

9321914008

main93219-14008

9331515012

main93315-15012

14 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota BLIZZARD

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota BLIZZARD. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1.
