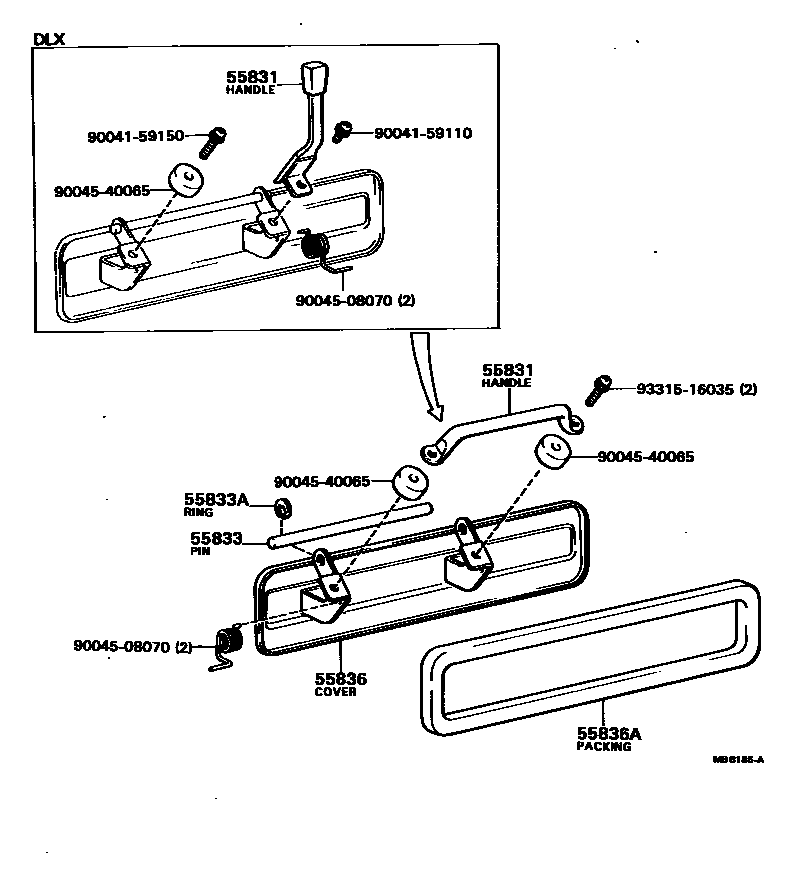

Toyota BLIZZARD — FRONT VENTILATOR

55831HANDLE OR LEVER, VENTILATOR SHUTTER

main55805-87601iLD10..DLX198003-198210

main74617-87202iLD10..STD198003-198210

55833PIN, FRONT VENTILATOR SUPPORT

main90042-49054iLD10198003-198404

55833ARING, RETAINING(FOR FRONT VENTILATOR SUPPORT PIN)

main96160-00600×2iLD10198003-198404

55836COVER, FRONT VENTILATOR OR FRONT VENTILATOR, LOWER

main55801-87602iLD10198003-198404

55836APACKING, FRONT VENTILATOR COVER

main55815-87601iLD10198003-198404

9004159110

main90041-59110

9004159150

main90041-59150

9004508070

main90045-08070

9004540065

main90045-40065

9331516035

main93315-16035

10 parts on this diagram · 1 diagram in section
