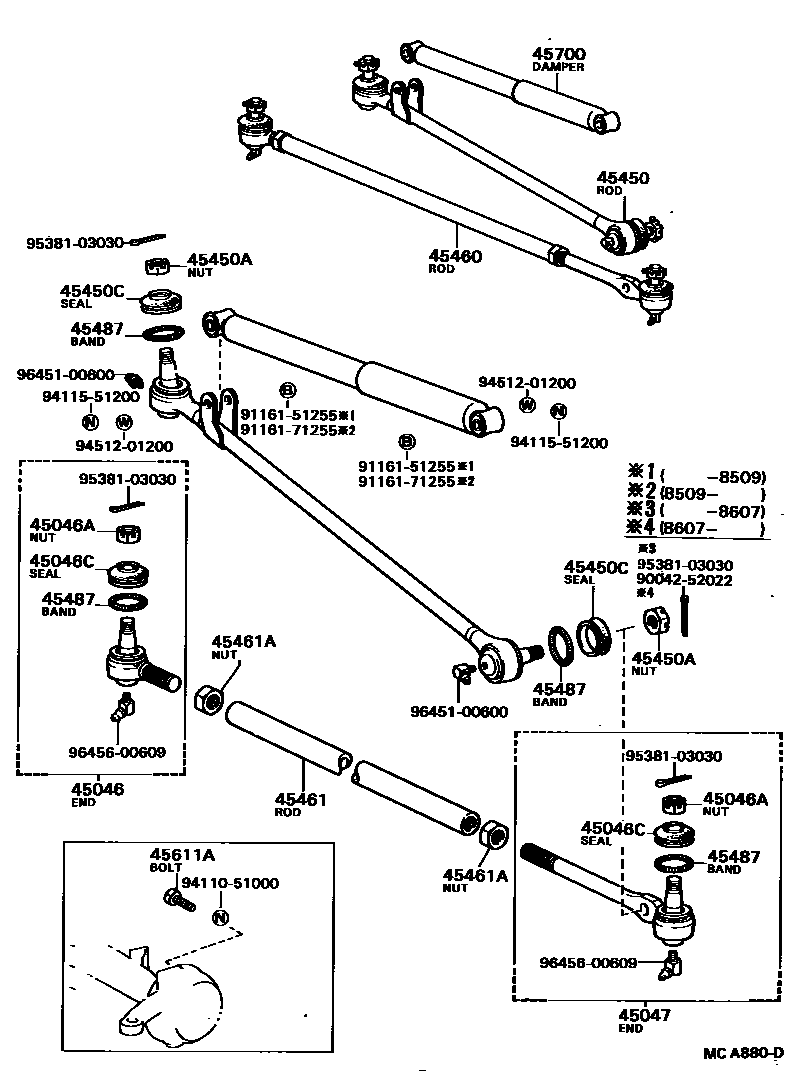

Toyota BLIZZARD — FRONT STEERING GEAR & LINK

Parts diagram

45046END SUB-ASSY, TIE ROD, RH

main45046-87680i198405-199002

45046ANUT, CASTLE(FOR TIE ROD END)

main90041-71031×2i198405-199002

45046CSEAL, DUST(FOR TIE ROD END)

main45479-87601×2i198405-199002

45047END SUB-ASSY, TIE ROD, LH

main45047-69075i198910-199002

main45047-87680i198405-198910

45450ROD ASSY, STEERING RELAY

main45450-87682i198405-199002

45450ANUT, CASTLE(FOR RELAY ROD)

main90041-71031×2i198405-199002

45450CSEAL, DUST(FOR RELAY ROD)

main45479-87601×2i198405-199002

45460ROD ASSY, TIE, RH

main45460-69145i198910-199002

main45460-87682i198405-198910

45461ROD, STEERING TIE

main45461-87603i198405-198910

main45461-87609i198910-199002

45461ANUT(FOR STEERING TIE ROD LOCK)

main90041-70232i198405-199002

LH

main90041-70236i198405-199002

RH

45487BAND, STEERING LINK JOINT DUST SEAL

main45487-87601×4i198405-199002

45611ABOLT, KNUCKLE STOPPER

main90041-06008×2i198405-199002

45700DAMPER ASSY, STEERING

main45700-87605i198405-199002

9004252022

main90042-52022

9116151255

main91161-51255

9116171255

main91161-71255

9411051000

main94110-51000

9411551200

main94115-51200

9451201200

main94512-01200

9538103030

main95381-03030

9645100600

main96451-00600

9645600609

main96456-00609

22 parts on this diagram · 4 diagrams in section

FRONT STEERING GEAR & LINK for Toyota BLIZZARD

This section contains 80 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota BLIZZARD. Key components include: WARM KIT, POWER STEERING, GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL), GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE, WASHER, PLATE(FOR STEERING WORM), RING, O(FOR STEERING WORM).
