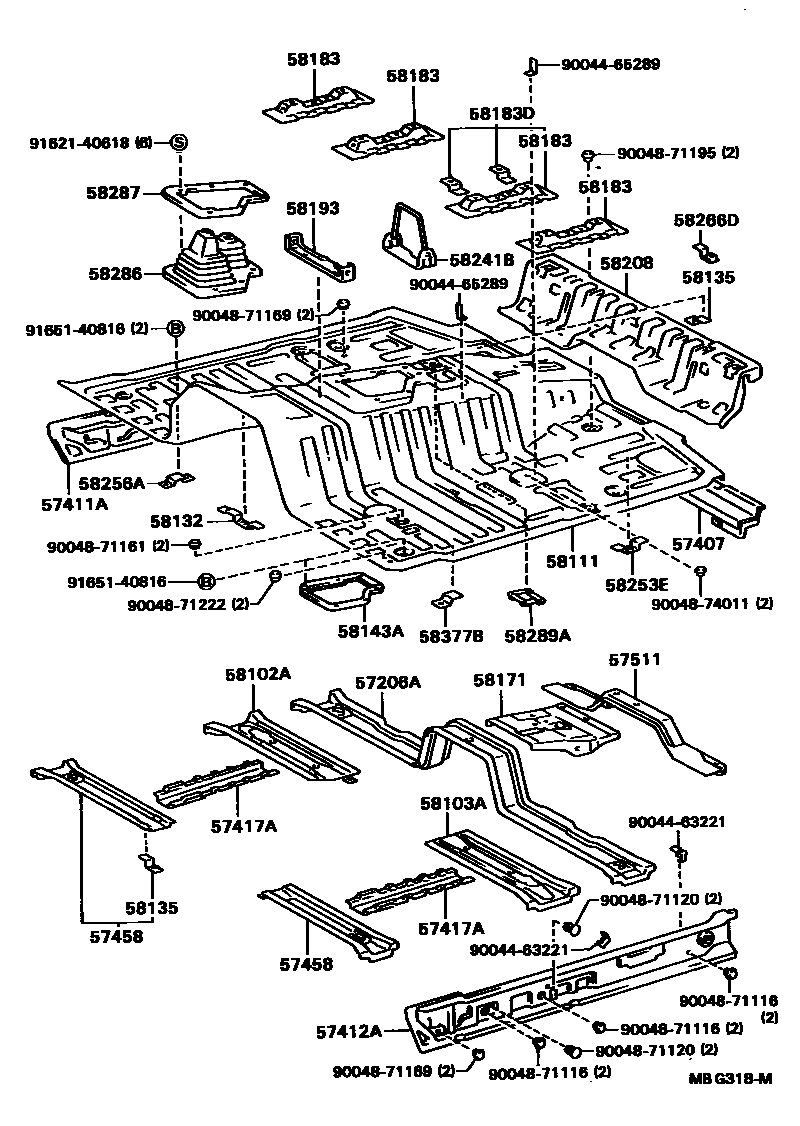

Toyota BLIZZARD — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-87601iLD2#198405-198906

main57206-87603iLD2#198906-199002

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-87601iLD20198405-198509

main57407-87602iLD2#198509-198805

main57407-87604iLD2#198805-199002

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-87601iLD20198405-198509

sub90950-01313

main57411-87602iLD2#198509-198904

main57411-87603iLD2#198904-199002

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-87601iLD20198405-198509

sub90950-01313

main57412-87602iLD2#198509-198904

sub90044-63221

main57412-87603iLD2#198904-199002

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-87604×2iLD2#198910-199002

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-87601iLD2#198405-199002

LH

sub57408-87602

main57408-87603iLD2#198405-199002

RH

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-87601iLD2#198910-199002

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-87602iLD2#198910-199002

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main58103-87605iLD2#198910-199002

58111PAN, FRONT FLOOR

main58111-87638iLD2#198910-199002

W/RR HEATER

main58111-87640iLD2#198910-199002

W/WINCH & RR HEATER

main58111-87641iLD2#198910-199002

main58111-87642iLD2#198910-199002

W/WINCH

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-87604iLD2#198910-199002

58135BRACKET, FLOOR INSULATOR SUPPORT

main58135-87606iLD2#198910-199002

58143ABRACKET, SHIFT LEVER BOOT

main58143-87602iLD2#198405-198805

main58143-87603iLD2#198805-199002

sub58143-87604

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-87613iLD2#198910-199002

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-87601×3iLD2#198910-199002

58183DBRACKET, FRONT SEAT MOUNTING, INSIDE LH

main58104-87602iLD2#198910-199002

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-87601iLD2#198910-199002

58208PAN, CENTER FLOOR

main58211-87604iLD20198405-198509

main58211-87606iLD2#198509-199002

58241BBRACKET, JACK

main58241-87602iLD2#198405-199002

58253EBRACKET, POWER TAKE-OFF CABLE CLAMP, NO.1

main58253-87604iLD2#198910-199002

W/WINCH;W/WINCH & RR HEATER

58256ABRACKET, FRONT FLOOR HARNESS

main58256-87601iLD2#198910-199002

58266DBRACKET, FUEL TUBE CLAMP

main58266-87702iLD2#198810-199002

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-87602iLD2#198405-198608

main58286-87604iLD2#198608-198805

main58286-87606iLD2#198805-199002

58287RETAINER, SHIFT LEVER BOOT

main58287-87601iLD2#198405-199002

58289AREINFORCEMENT, POWER TAKE-OFF LEVER HOLE

main58289-87601iLD2#198910-199002

W/WINCH;W/WINCH & RR HEATER

58377BRETAINER, LOWER BACK TRIM

main58377-87101iLD2#198910-199002

9004463221

main90044-63221

9004465289

main90044-65289

9004871116

main90048-71116

9004871120

main90048-71120

9004871161

main90048-71161

9004871169

main90048-71169

9004871195

main90048-71195

9004871222

main90048-71222

9004874011

main90048-74011

9162140618

main91621-40618

9165140816

main91651-40816

37 parts on this diagram · 1 diagram in section
