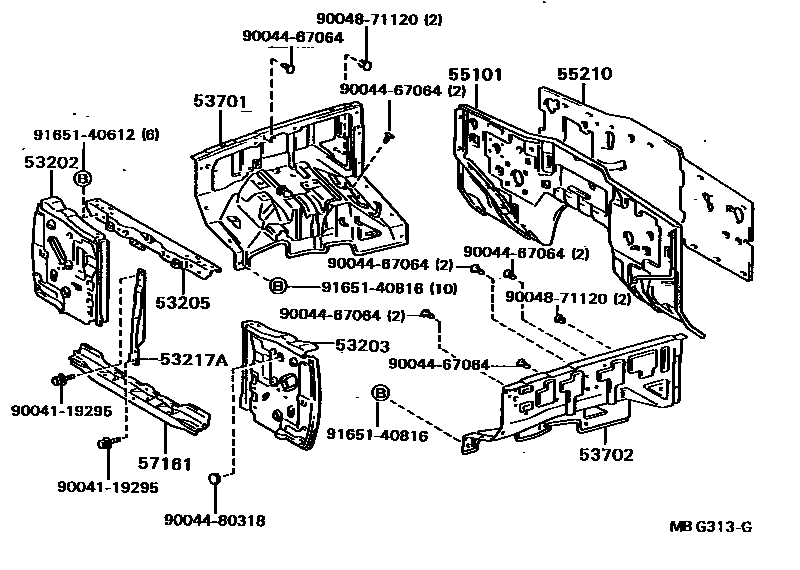

Toyota BLIZZARD — FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-87624iLD2#198405-198709

main53202-87626iLD2#198709-198804

sub90179-08040

main53202-87627iLD2#198804-199002

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-87614iLD2#198405-198709

main53203-87616iLD2#198709-198804

sub90179-08040

main53203-87617iLD2#198804-199002

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-87603iLD2#198405-198709

main53205-87605iLD2#198709-199002

53217ABRACE, HOOD LOCK SUPPORT

main53217-87602iLD2#198405-198810

main53217-87604iLD2#198810-199002

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-87609iLD2#198405-199002

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-87612iLD2#198405-199002

sub53702-87618

55101PANEL SUB-ASSY, DASH

main55101-87633iLD20198405-198408

main55101-87638iLD20..V..TD198409-198501

main55101-87639iLD2#..TD198501-199002

main55101-87649iLD20..DSL198408-199002

55210INSULATOR ASSY, DASH PANEL

main55210-87603iLD20..DSL198405-198911

main55210-87605iLD2#..TD198409-199002

57161CROSSMEMBER, FRONT

main57104-87601iLD2#198405-199002

sub57104-87604

9004119295

main90041-19295

9004467064

main90044-67064

9004480318

main90044-80318

9004871120

main90048-71120

9165140612

main91651-40612

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section
