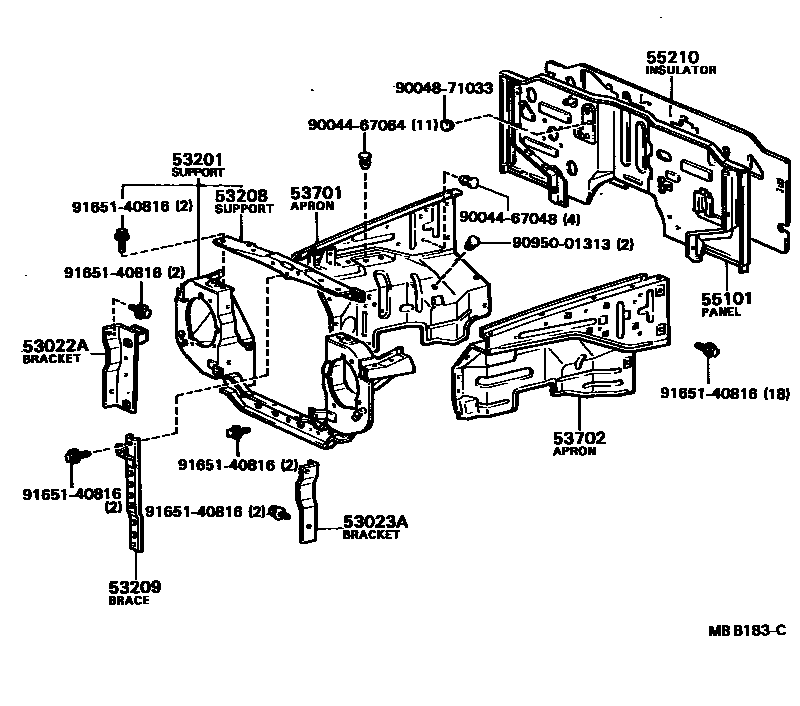

Toyota BLIZZARD — FRONT FENDER APRON & DASH PANEL

53022ABRACKET SUB-ASSY,RADIATOR GRILLE SUPPORT, RH

main51406-87601iLD10198003-198404

53023ABRACKET SUB-ASSY, RADIATOR GRILLE SUPPORT, LH

main51412-87605iLD10198003-198404

53201SUPPORT SUB-ASSY, RADIATOR

main53200-87603iLD10198203-198210

main53200-87604iLD10198210-198404

main53203-87612iLD10198003-198203

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

main53250-87601iLD10198003-198404

53209BRACE SUB-ASSY, HOOD LOCK

main53209-87601iLD10198003-198404

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-87603iLD10198003-198110

sub90044-80258

main53701-87604iLD10198110-198404

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-87605iLD10198003-198110

sub90044-80258

main53702-87611iLD10198110-198404

55101PANEL SUB-ASSY, DASH

main55101-87616iLD10198003-198110

main55101-87617iLD10198110-198210

main55101-87622iLD10..V198210-198404

55210INSULATOR ASSY, DASH PANEL

main55210-87601iLD10..V198210-198404

9004467048

main90044-67048

9004467064

main90044-67064

9004871033

main90048-71033

9095001313

main90950-01313

9165140816

main91651-40816

14 parts on this diagram · 1 diagram in section
