Toyota BLIZZARD — FRONT FENDER APRON & DASH PANEL

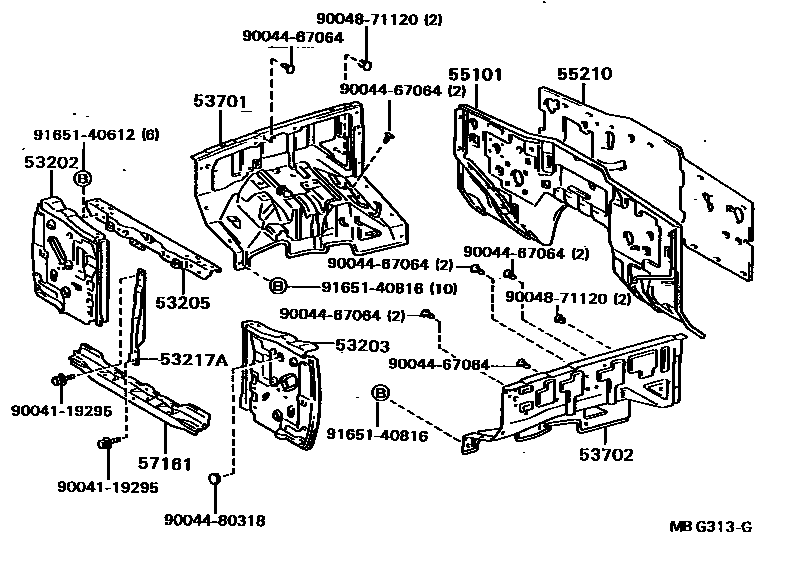

Parts diagram

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-87624i198405-198709

main53202-87626i198709-198804

main53202-87627i198804-199002

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-87614i198405-198709

main53203-87616i198709-198804

main53203-87617i198804-199002

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-87603i198405-198709

main53205-87605i198709-199002

53217ABRACE, HOOD LOCK SUPPORT

main53217-87602i198405-198810

main53217-87604i198810-199002

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-87609i198405-199002

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-87612i198405-199002

55101PANEL SUB-ASSY, DASH

main55101-87633i198405-198408

main55101-87638i198409-198501

main55101-87639i198501-199002

main55101-87649i198408-199002

55210INSULATOR ASSY, DASH PANEL

main55210-87603i198405-198911

main55210-87605i198409-199002

57161CROSSMEMBER, FRONT

main57104-87601i198405-199002

9004119295

main90041-19295

9004467064

main90044-67064

9004480318

main90044-80318

9004871120

main90048-71120

9165140612

main91651-40612

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota BLIZZARD

This section contains 15 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota BLIZZARD. Key components include: SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, BRACE, HOOD LOCK SUPPORT, APRON SUB-ASSY, FRONT FENDER, RH.
