Toyota BLIZZARD — FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-87601×2i198405-198810

main68171-87605×2i198810-199002

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-87203i198405-198602

main68710-87607i198602-199002

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-87203i198405-198602

main68720-87607i198602-199002

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-87205i198405-198602

main68730-87702i198602-198810

main68730-87703i198810-199002

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-87205i198405-198602

main68740-87702i198602-198810

main68740-87703i198810-199002

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-33×2i198405-199002

SHADOW GRAY,SHADOW GRAY

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-87601×2i198405-198908

main69268-87701-23×2i198908-199002

DARK GRAY,DARK GRAY

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-87602i198405-198412

main69810-87603i198412-198810

main69810-87605i198810-198906

main69810-87606i198906-199002

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-87602i198405-198412

main69820-87603i198412-198810

main69820-87605i198810-198906

main69820-87606i198906-199002

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87601i198405-198810

main69901-87602i198810-199002

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87601i198405-199002

9004119235

main90041-19235

9166140612

main91661-40612

9338216010

main93382-16010

14 parts on this diagram · 1 diagram in section

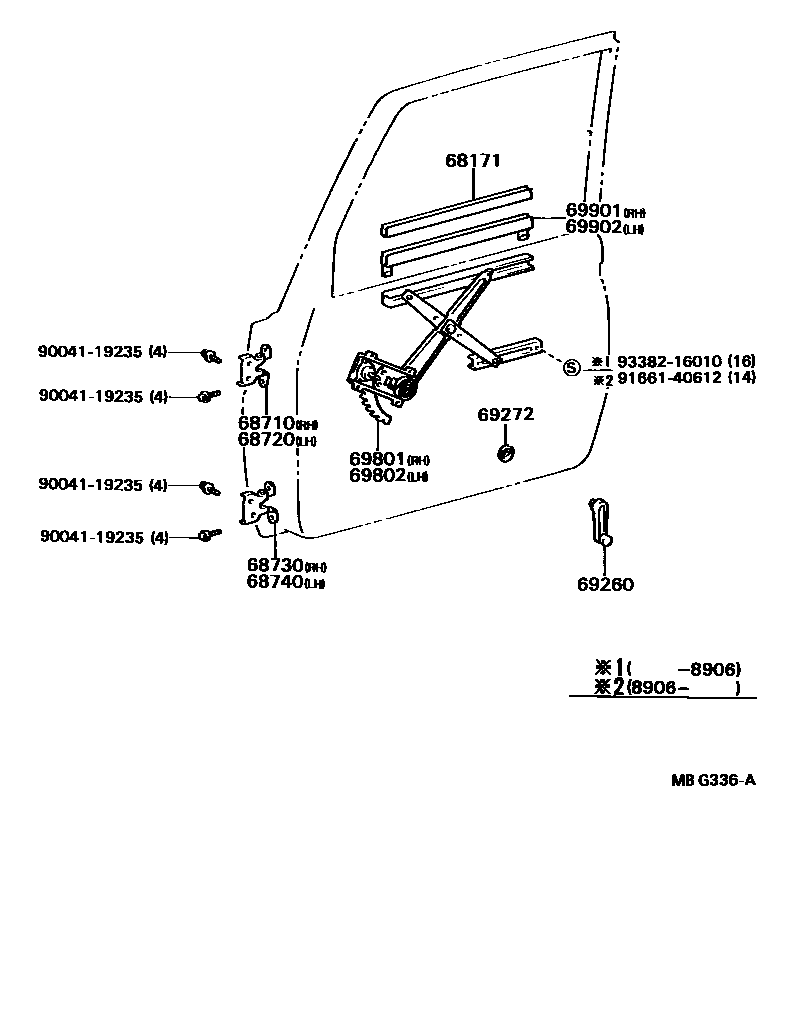

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota BLIZZARD

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota BLIZZARD. Key components include: WEATHERSTRIP, FRONT DOOR GLASS CHANNEL, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
