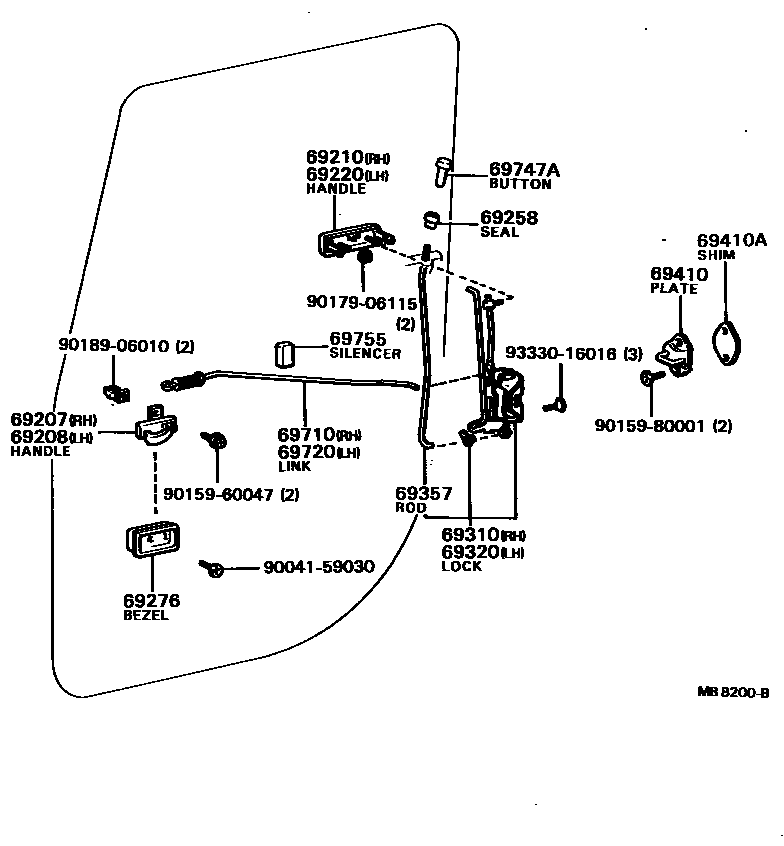

Toyota BLIZZARD — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69258SEAL, DOOR OUTSIDE PANEL HOLE
69276BEZEL, FRONT DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69357ROD, FRONT DOOR LOCKING CONTROL PUSH
RH
LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69410ASHIM, FRONT DOOR LOCK STRIKER PLATE
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
69755SILENCER, FRONT DOOR LOCK LINK
9004159030
main90041-59030
9015960047
main90159-60047
9015980001
main90159-80001
9017906115
main90179-06115
9018906010
main90189-06010
9333016016
main93330-16016
21 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota BLIZZARD
This section contains 43 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota BLIZZARD. Key components include: HOLDER SUB-ASSY, GUARD BAR, HANDLE, GUARD BAR, COVER(FOR GUARD BAR HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, GASKET(FOR FRONT DOOR INSIDE HANDLE).
