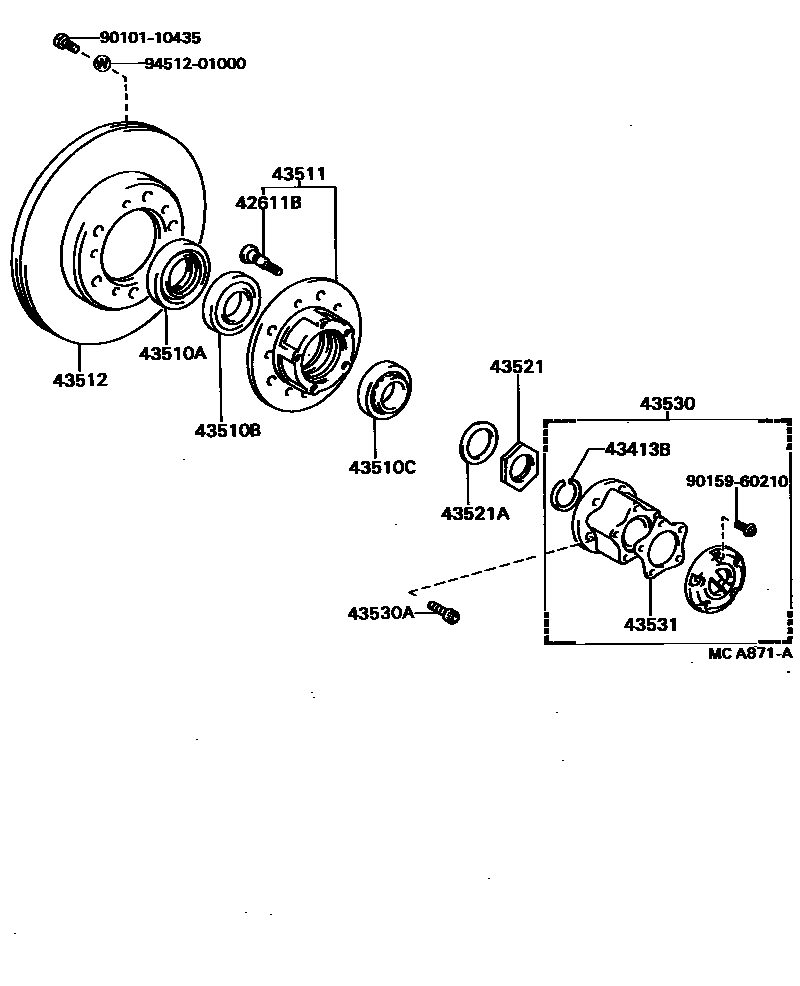

Toyota BLIZZARD — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90049-12027×10i198405-198908

main90049-12053×10i198908-199002

43413BRING, DRIVE SHAFT SNAP

main90045-20075×2i198405-199002

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90043-11080×2i198405-199002

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90043-66015×2i198405-199002

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90043-66014×2i198405-199002

43511HUB, FRONT AXLE

main43502-87605×2i198405-199002

43512DISC, FRONT

main43512-87603×2i198405-198809

main43512-87607×2i198809-199002

43521NUT, FRONT WHEEL ADJUSTING

main43521-87601×4i198405-199002

43521AWASHER, CLAW (FOR FRONT WHEEL ADJUSTING NUT)

main90042-14006×2i198405-199002

43530HUB ASSY, FREE WHEEL

main43530-87683×2i198405-199002

43530ABOLT (FOR FREE WHEEL HUB)

main90041-10014×10i198405-199002

main90041-10018×10i198810-198911

W/ALUMI WHEEL

9010110435

main90101-10435

9015960210

main90159-60210

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota BLIZZARD

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota BLIZZARD. Key components include: BOLT, HUB (FOR FRONT AXLE), RING, DRIVE SHAFT SNAP, SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING).
