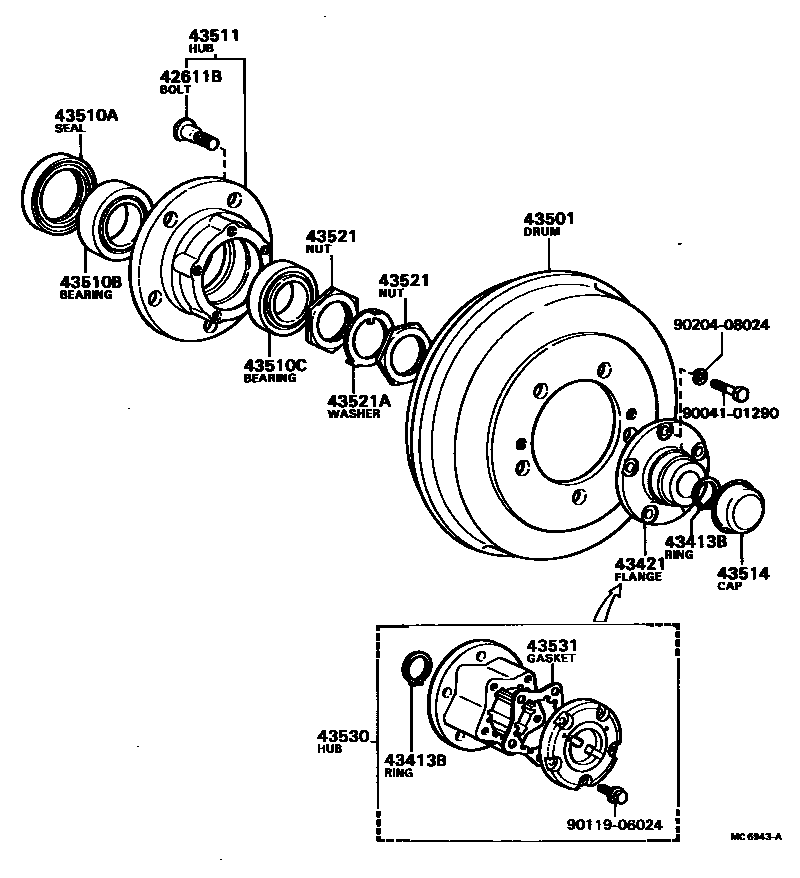

Toyota BLIZZARD — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90049-12025×10i198003-198110

main90049-12027×10i198110-198404

43413BRING, DRIVE SHAFT SNAP

main90045-20075×2i198003-198404

43421FLANGE, FRONT AXLE OUTER SHAFT

main43421-87601×2i198003-198110

main43421-87602×2i198110-198404

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-87601×2i198003-198110

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90043-11080×2i198003-198404

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90043-66015×2i198003-198404

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90043-66014×2i198003-198404

43511HUB, FRONT AXLE

main43502-87602×2i198003-198110

main43502-87603×2i198110-198404

43514CAP, FRONT HUB GREASE

main43514-87601×2i198003-198110

main43514-87602×2i198110-198404

43521NUT, FRONT WHEEL ADJUSTING

main43521-87601×4i198003-198404

43521AWASHER, CLAW (FOR FRONT WHEEL ADJUSTING NUT)

main90042-14006×2i198003-198404

43530HUB ASSY, FREE WHEEL

main43530-69025×2i198003-198404

43531GASKET, FREE WHEEL HUB

main43531-87601×2i198003-198404

9004101290

main90041-01290

9011906024

main90119-06024

9020408024

main90204-08024

16 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota BLIZZARD

This section contains 19 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota BLIZZARD. Key components include: BOLT, HUB (FOR FRONT AXLE), RING, DRIVE SHAFT SNAP, FLANGE, FRONT AXLE OUTER SHAFT, DRUM SUB-ASSY, FRONT BRAKE, SEAL, OIL (FOR FRONT AXLE HUB).
