Toyota BLIZZARD — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-87603i198405-199002

43211DPLUG (FOR STEERING KNUCKLE)

main90043-41049×2i198608-199002

main90341-18049×2i198405-198608

43211JGASKET (FOR STEERING KNUCKLE FILLER PLUG)

main12157-10010×2i198405-199002

43212KNUCKLE, STEERING, LH

main43212-87603i198405-199002

43232CAP, STEERING KNUCKLE BEARING

main43232-87603×2i198405-199002

UPR

main43233-87603×2i198405-199002

LWR

43233SHIM, STEERING KNUCKLE ADJUST, NO.1

main90045-65045×4i198405-199002

main90045-65046×4i198405-199002

main90045-65047×4i198405-199002

main90045-65048×4i198405-199002

main90045-65049×4i198405-199002

43242PLATE, OIL SEAL COVER, OUTER

main43241-87604×2i198405-199002

main43241-87605i198405-199002

RR,RH

main43241-87606i198405-199002

RR,LH

43242APLATE, OIL SEAL COVER, INNER

main43242-87603×2i198405-199002

43431SPINDLE, STEERING KNUCKLE

main43401-87604×2i198405-199002

43511ASEAL, DUST (FOR FRONT AXLE HUB)

main90043-18004×2i198405-198505

main90043-18005×2i198505-199002

45611FBEARING(FOR STEERING KNUCKLE ARM)

main90043-66026×4i198405-198910

main90043-66050×4i198910-199002

9004119531

main90041-19531

9165140614

main91651-40614

13 parts on this diagram · 1 diagram in section

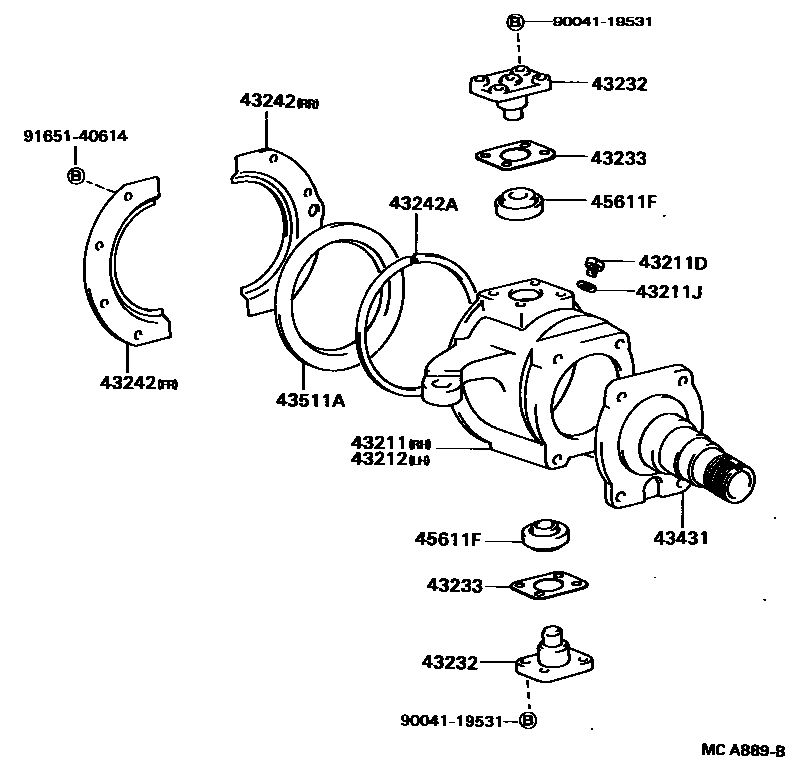

FRONT AXLE ARM & STEERING KNUCKLE for Toyota BLIZZARD

This section contains 13 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota BLIZZARD. Key components include: KNUCKLE, STEERING, RH, PLUG (FOR STEERING KNUCKLE), GASKET (FOR STEERING KNUCKLE FILLER PLUG), KNUCKLE, STEERING, LH, CAP, STEERING KNUCKLE BEARING.
