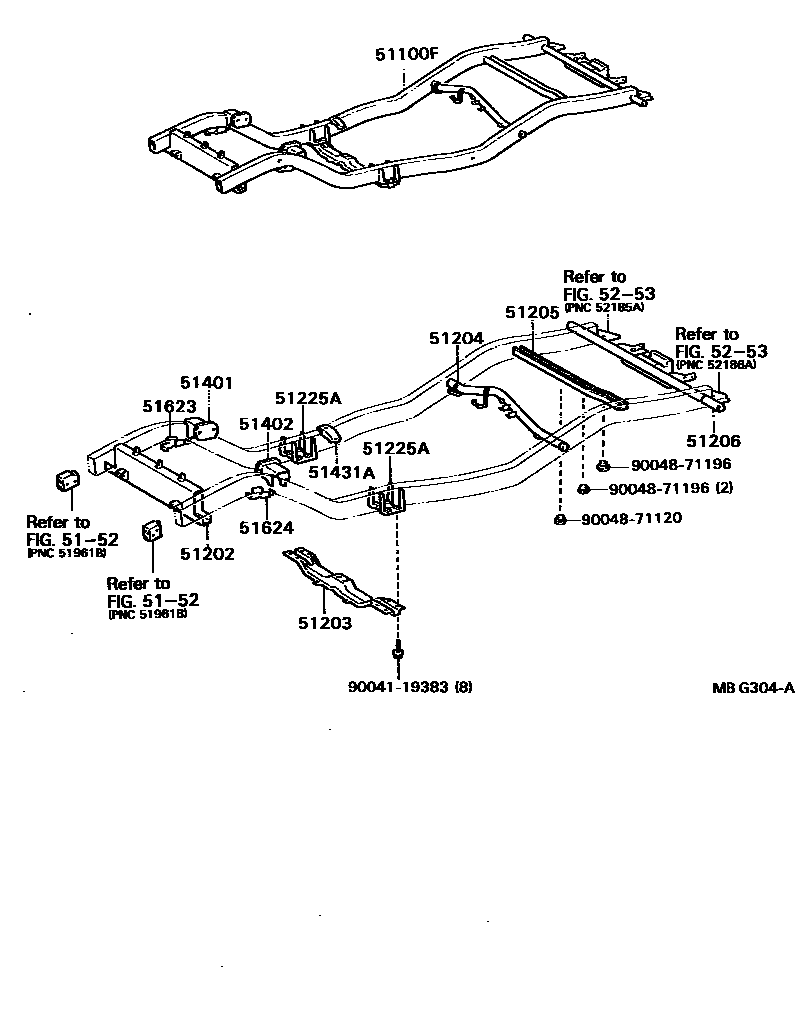

Toyota BLIZZARD — FRAME

51100FFRAME SUB-ASSY

main51002-87653iLD20198405-198509

main51002-87660iLD20..LX198405-198509

W/3 STAGE ABSORBER

main51003-87606iLD2#..LX,LX5,SX5198509-198910

W/3 STAGE ABSORBER

main51003-87619iLD20..DX198509-198910

main51003-87658iLD2#198910-199002

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-87603iLD2#198405-199002

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-87602iLD2#198405-199002

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-87609iLD2#198405-199002

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-87603iLD2#198405-198811

main51204-87605iLD2#198811-199002

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-87602iLD2#198405-198910

main51205-87607iLD2#198910-199002

sub51205-87608

51225ABRACKET, CROSSMEMBER, NO.2

main51225-87603×2iLD2#198405-199002

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-87608iLD2#198405-199002

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-87608iLD2#198405-199002

51431ABRACKET, ENGINE REAR SUPPORT, RH

main51431-87602iLD2#198405-199002

5152

51623BRACKET, FRONT SPRING BOUND STOPPER, RH

main51603-87601iLD2#198405-199002

51624BRACKET, FRONT SPRING BOUND STOPPER, LH

main51612-87602iLD2#198405-199002

5253

9004119383

main90041-19383

9004871120

main90048-71120

9004871196

main90048-71196

17 parts on this diagram · 1 diagram in section
