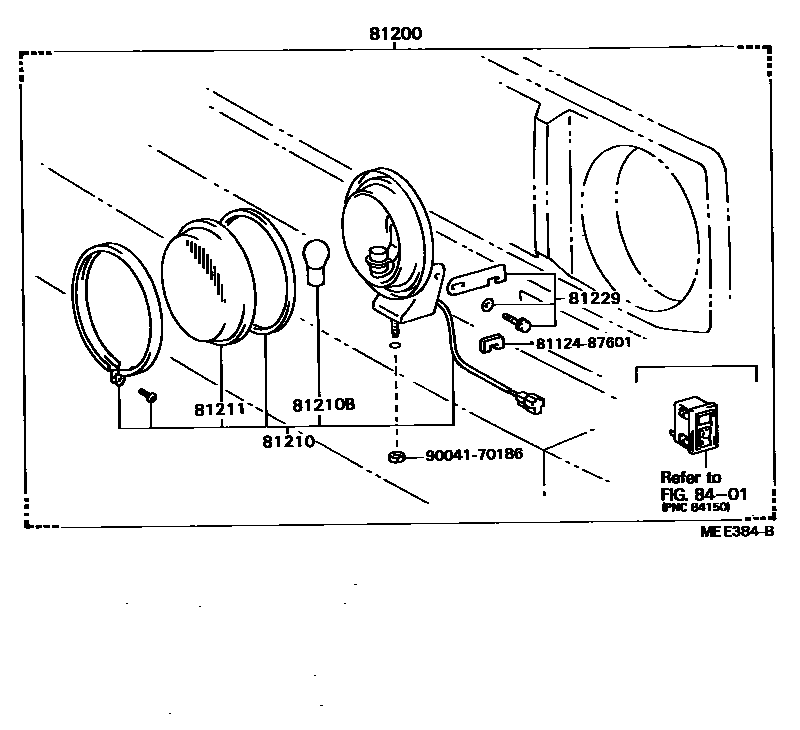

Toyota BLIZZARD — FOG LAMP

81200LAMP ASSY, FOG

main81205-87681×2i198405-198608

main81210-29085i198608-198911

81210LAMP ASSY, FOG

main81201-87601×2i198405-198911

81210BBULB, FOG LAMP

main90049-51053×2i198405-198911

81211LENS, FOG LAMP

main81211-87601×2i198405-198911

81229BRACKET, FOG LAMP

main81481-87601×2i198405-198911

8112487601SPACER

main81124-87601

9004170186

main90041-70186

7 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota BLIZZARD

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota BLIZZARD. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, BRACKET, FOG LAMP.
