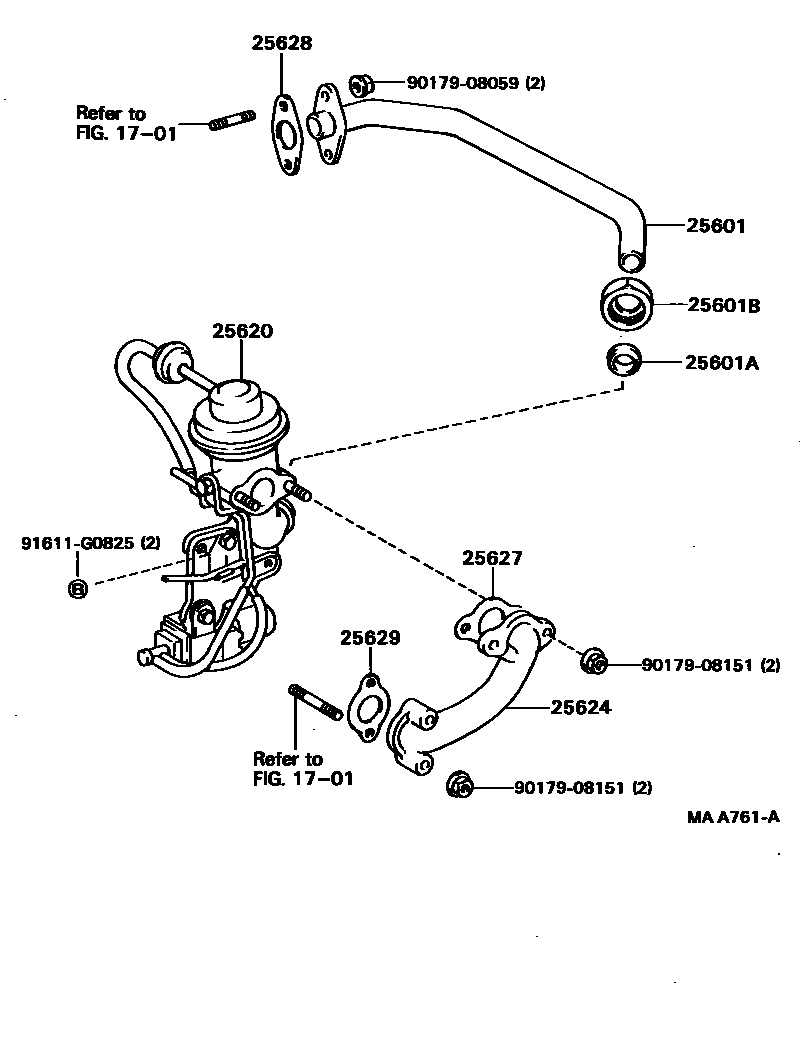

Toyota BLIZZARD — EXHAUST GAS RECIRCULATION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54050i198709-199002

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-25001i198709-199002

25601BNUT, UNION, EGR PIPE, NO.1

main90402-33001i198709-199002

25620VALVE ASSY, EGR

main25800-54050i198709-199002

25624ADAPTER, EGR VALVE

main25624-54030i198709-199002

25627GASKET, EGR VALVE

main25627-54010i198709-198904

main25627-54011i198904-199002

25628GASKET, EGR INLET

main25628-54011i198709-198808

main25628-54012i198808-199002

25629GASKET, EGR VALVE ADAPTER

main25629-54010i198709-198904

main25629-54011i198904-199002

9017908059

main90179-08059

9017908151

main90179-08151

91611G0825

main91611-G0825

12 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota BLIZZARD

This section contains 12 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota BLIZZARD. Key components include: MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR.
