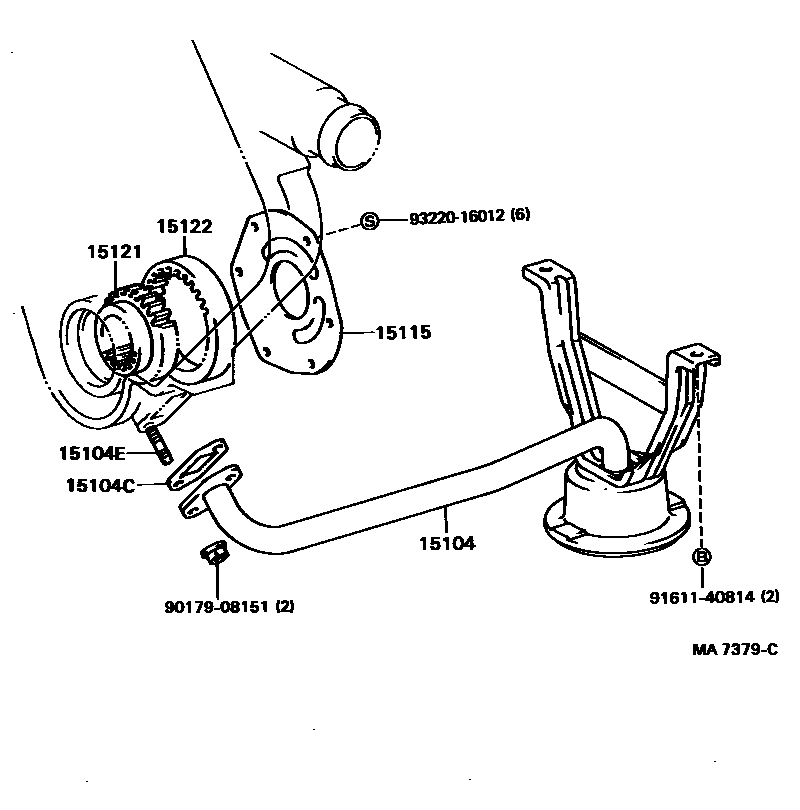

Toyota BLIZZARD — ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-54022i198405-198510

main15104-54023i198510-198805

main15104-54140i198805-199002

15104CGASKET(FOR OIL STRAINER)

main15149-54011i198405-198808

main15149-54012i198808-199002

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816×2i198405-199002

15115COVER, OIL PUMP

main15115-54011i198405-198504

main15115-54012i198504-199002

15121GEAR, OIL PUMP DRIVE

main15121-54010i198405-199002

N=42

15122GEAR, OIL PUMP DRIVEN

main15122-54010i198405-199002

N=31

9017908151

main90179-08151

9161140814

main91611-40814

9322016012

main93220-16012

9 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota BLIZZARD

This section contains 9 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota BLIZZARD. Key components include: STRAINER SUB-ASSY, OIL, GASKET(FOR OIL STRAINER), BOLT, STUD(FOR OIL STRAINER), COVER, OIL PUMP, GEAR, OIL PUMP DRIVE.
