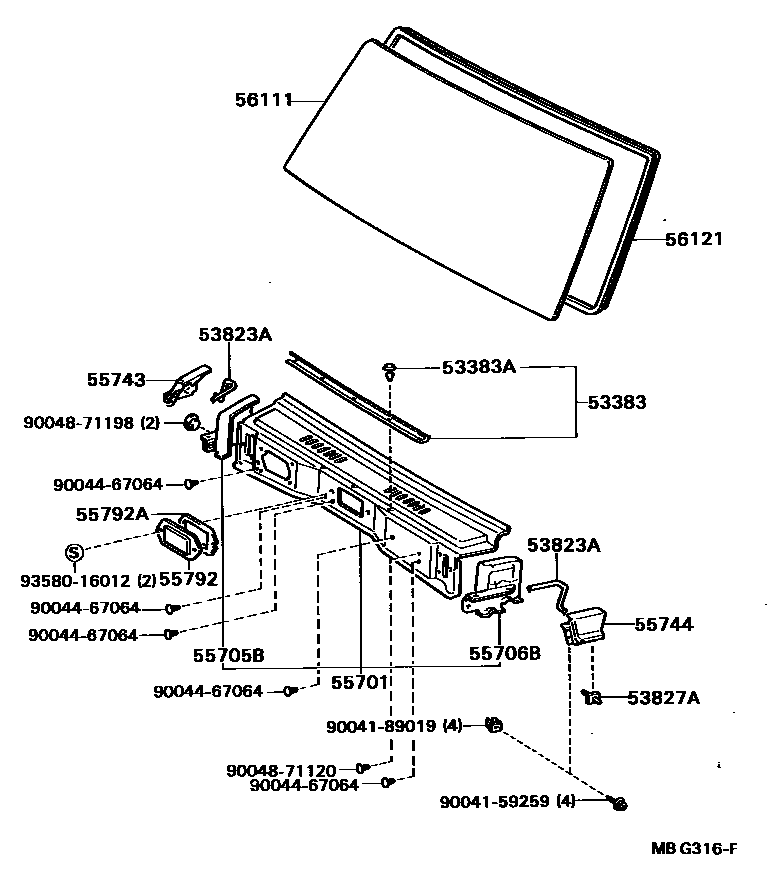

Toyota BLIZZARD — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-87602i198405-199002

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08011×3i198405-199002

53823APROTECTOR, FRONT SIDE PANEL, NO.2

main53823-87603×2i198405-199002

53827ARETAINER, FRONT SIDE PANEL SET

main53827-95700×4i198405-199002

55701PANEL SUB-ASSY, COWL

main55701-87616i198405-198810

main55701-87619i198405-198810

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-87601i198405-199002

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-87609i198405-199002

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55707-87609i198405-199002

55744PANEL, COWL TOP OUTSIDE CORNER, LH

main55708-87601i198405-199002

55792COVER, WIPER MOTOR SERVICE HOLE

main55796-87601i198405-198505

55792ASEAL, WIPER MOTOR SERVICE HOLE

main58414-87601i198409-198505

56111GLASS, WINDSHIELD

main56111-87604i198405-198608

*ZT,T=5.0

main56111-87605i198509-198810

main56111-87607i198405-198608

*ZT,T=5.0

main56111-87608i198509-198810

main56111-87610i198405-198608

*ZT,T=5.0

main56111-87611i198405-198608

*ZT,T=5.0

main56111-87612i198409-198608

BRONZE,*ZT,T=5.0

main56111-87613i198409-198608

BRONZE,*ZT,T=5.0

main56111-87614i198509-198810

main56111-87615i198509-198810

main56111-87616i198810-198911

main56111-87617i198509-198810

main56111-87621i198810-199002

56121WEATHERSTRIP, WINDSHIELD

main56121-87603i198405-198810

main56121-87604i198405-198810

main56121-87606i198810-199002

9004159259

main90041-59259

9004189019

main90041-89019

9004467064

main90044-67064

9004871120

main90048-71120

9004871198

main90048-71198

9358016012

main93580-16012

19 parts on this diagram · 2 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota BLIZZARD

This section contains 39 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota BLIZZARD. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PROTECTOR, FRONT SIDE PANEL, NO.2, RETAINER, FRONT SIDE PANEL SET, PANEL SUB-ASSY, COWL.
