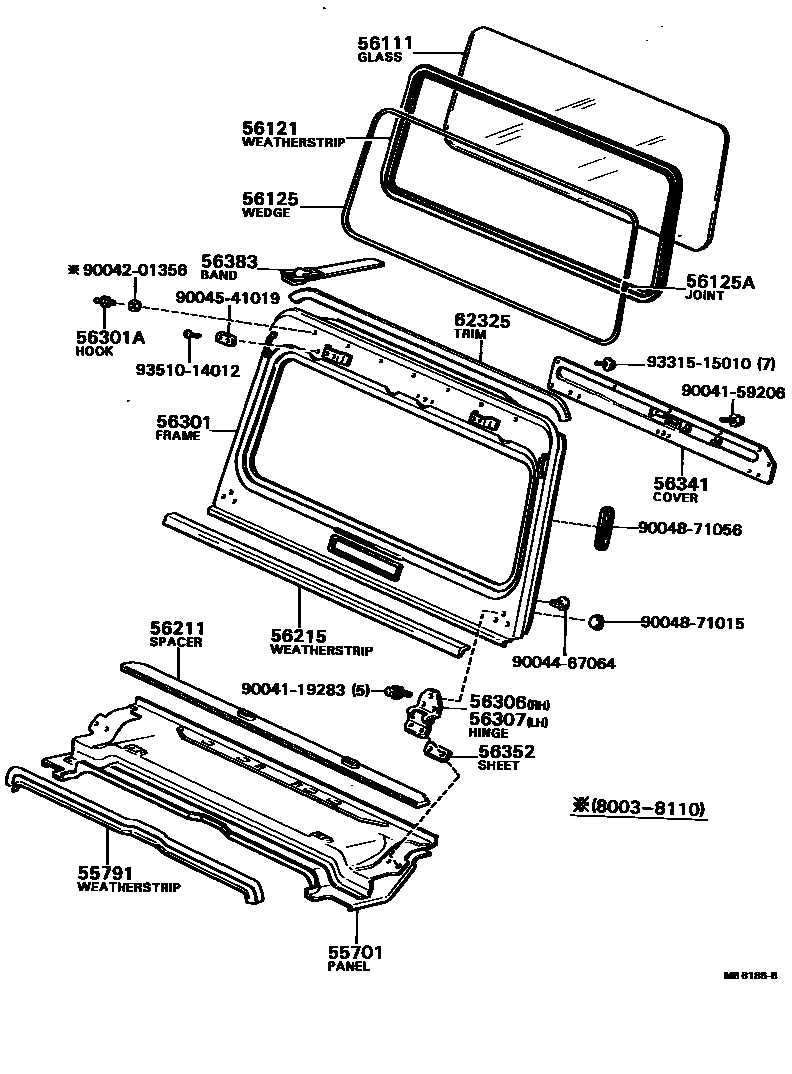

Toyota BLIZZARD — COWL PANEL & WINDSHIELD GLASS
55791WEATHERSTRIP, HOOD TO COWL TOP
56111GLASS, WINDSHIELD
*ZT,T=5.0
56121WEATHERSTRIP, WINDSHIELD
56125WEDGE, WINDSHIELD WEATHERSTRIP
56125AJOINT(FOR WINDSHIELD WEDGE)
56211SPACER, WINDSHIELD
56215WEATHERSTRIP, TO SPACER WINDSHIELD
56301FRAME SUB-ASSY, WINDSHIELD
56301AHOOK, MALE(FOR TARPAULIN)
56306HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH
56307HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH
56341COVER, WINDSHIELD WIPER HOLE
56352SHEET, WINDSHIELD HINGE, MALE
56383BAND, WINDSHIELD SET
62325TRIM, WINDSHIELD FRAME
9004119283
main90041-19283
9004159206
main90041-59206
9004201356
main90042-01356
9004467064
main90044-67064
9004541019
main90045-41019
9004871015
main90048-71015
9004871056
main90048-71056
9331515010
main93315-15010
9351014012
main93510-14012
25 parts on this diagram · 2 diagrams in section
COWL PANEL & WINDSHIELD GLASS for Toyota BLIZZARD
This section contains 31 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota BLIZZARD. Key components include: PANEL SUB-ASSY, COWL, WEATHERSTRIP, HOOD TO COWL TOP, GLASS, WINDSHIELD, WEATHERSTRIP, WINDSHIELD, WEDGE, WINDSHIELD WEATHERSTRIP.
