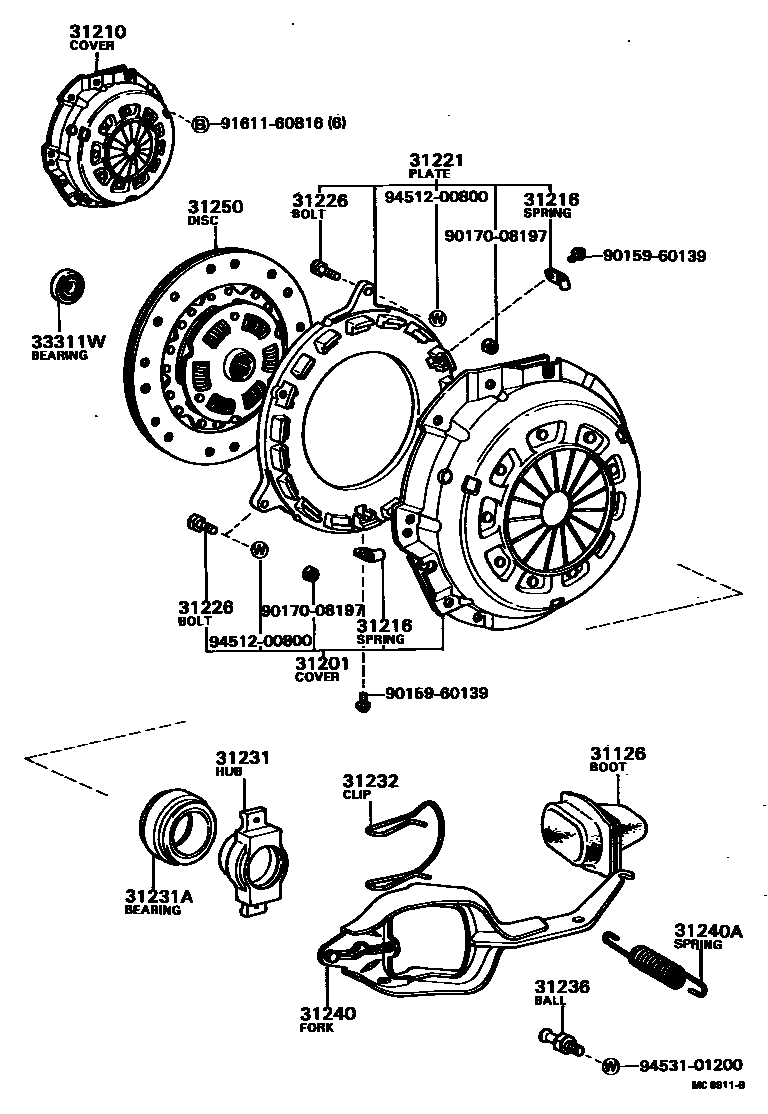

Toyota BLIZZARD — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-87601iLD10198003-198404

31201COVER SUB-ASSY, CLUTCH

main31201-29076iLD10198003-198008

main31201-29085iLD10198008-198404

sub31201-26010

31210COVER ASSY, CLUTCH

main31210-36028iLD10198003-198008

main31210-36029iLD10198008-198404

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010×3iLD10198003-198404

31221PLATE, CLUTCH PRESSURE

main31221-39056iLD10198003-198404

sub31221-36025

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08350×3iLD10198003-198404

sub90101-08022

31231HUB, CLUTCH RELEASE BEARING

main31231-87307iLD10198003-198404

sub31231-87602

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40008iLD10198003-198404

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-87604iLD10198003-198404

31236BALL, RELEASE FORK

main31236-87304iLD10198003-198404

31240FORK ASSY, CLUTCH RELEASE

main31204-87601iLD10198003-198404

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90045-06105iLD10198003-198404

31250DISC ASSY, CLUTCH

main31250-25062iLD10198003-198006

main31250-25063iLD10198006-198101

sub31250-35080

main31250-60050iLD10198101-198105

main31250-60051iLD10198105-198210

sub31250-60151

main31250-60060iLD10198210-198404

sub31250-26050

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLD10198011-198404

sub90363-12024

main97143-06201iLD10198003-198011

9015960139

main90159-60139

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

9453101200

main94531-01200

19 parts on this diagram · 1 diagram in section
