Toyota BLIZZARD — BRAKE TUBE & CLAMP

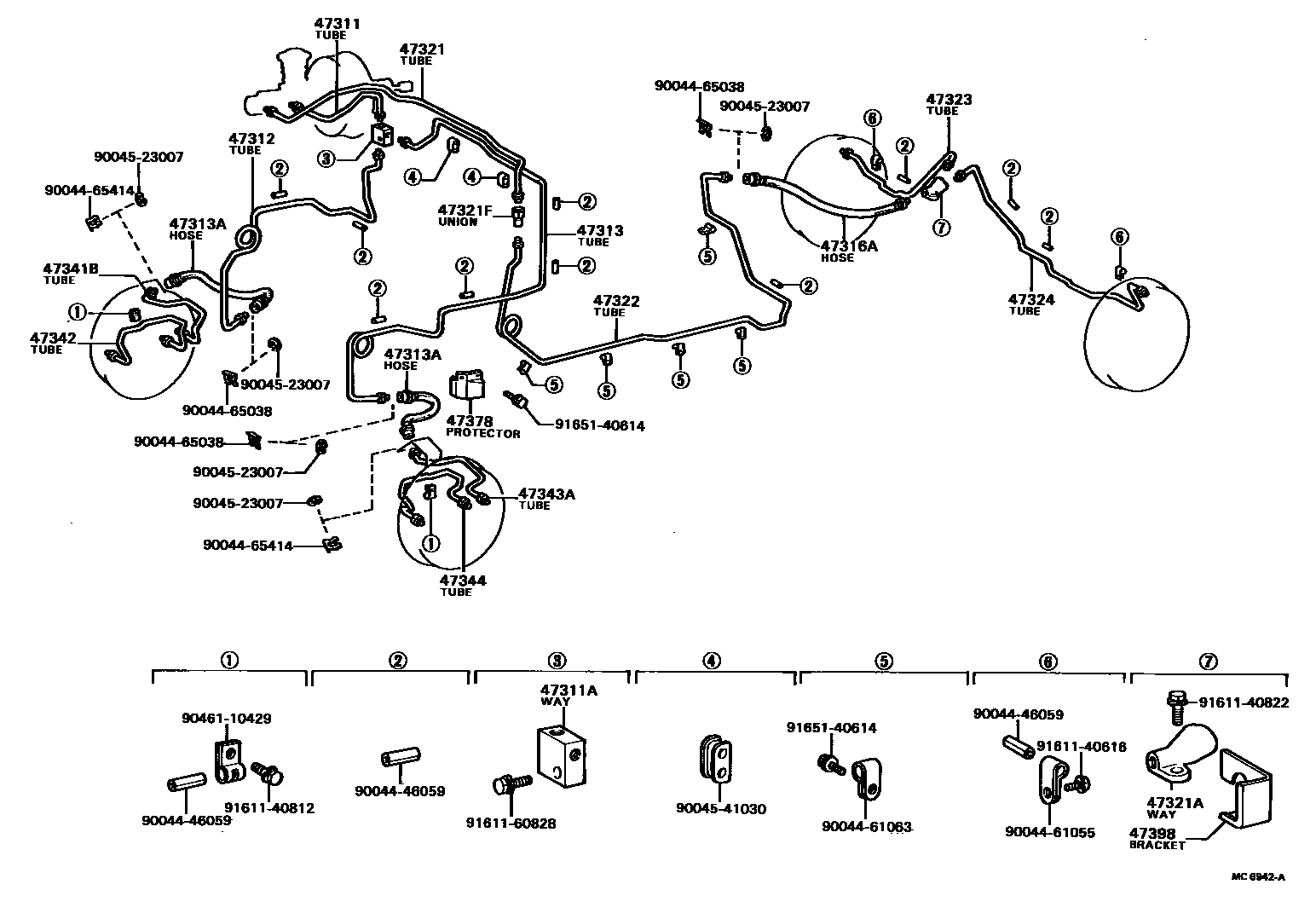

Parts diagram

47311TUBE, FRONT BRAKE, NO.1

main47311-87612i198003-198404

47311AWAY(FOR FRONT BRAKE TUBE)

main90044-13022i198003-198305

47312TUBE, FRONT BRAKE, NO.2

main47313-87609i198003-198110

main47313-87612i198110-198404

47313TUBE, FRONT BRAKE, NO.3

main47314-87614i198003-198110

main47314-87617i198110-198404

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90049-22057×2i198003-198110

main90049-22072×2i198110-198404

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90049-22038i198003-198110

main90049-22073i198110-198404

47321TUBE, REAR BRAKE, NO.1

main47312-87608i198003-198404

47321AWAY(FOR REAR BRAKE TUBE)

main90044-13025i198003-198110

47321FUNION(FOR REAR BRAKE TUBE)

main90044-04004i198003-198404

47322TUBE, REAR BRAKE, NO.2

main47315-87615i198003-198404

47323TUBE, REAR BRAKE, NO.3

main47318-87604i198003-198110

main47321-87601i198110-198404

47324TUBE, REAR BRAKE, NO.4

main47319-87604i198003-198110

main47322-87601i198110-198404

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47333-87602i198003-198110

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47331-87601i198003-198110

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47334-87602i198003-198110

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47332-87601i198003-198110

47378PROTECTOR, BRAKE TUBE

main47341-87603i198003-198110

RH

main47341-87604i198110-198404

RH

main47342-87601i198003-198110

LH

main47342-87602i198110-198404

LH

47398BRACKET, 3 WAY ATTACHING SHEET

main47398-87601i198003-198110

9004446059

main90044-46059

9004461055

main90044-61055

9004461063

main90044-61063

9004465038

main90044-65038

9004465414

main90044-65414

9004523007

main90045-23007

9004541030

main90045-41030

9046110429

main90461-10429

9161140616

main91611-40616

9161140812

main91611-40812

9161140822

main91611-40822

9161160828

main91611-60828

9165140614

main91651-40614

31 parts on this diagram · 2 diagrams in section

BRAKE TUBE & CLAMP for Toyota BLIZZARD

This section contains 39 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota BLIZZARD. Key components include: TUBE, FRONT BRAKE, NO.1, WAY(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2, TUBE, FRONT BRAKE, NO.3, HOSE, FLEXIBLE, NO.1(FOR FRONT).
