Toyota BLIZZARD — BATTERY & BATTERY CABLE

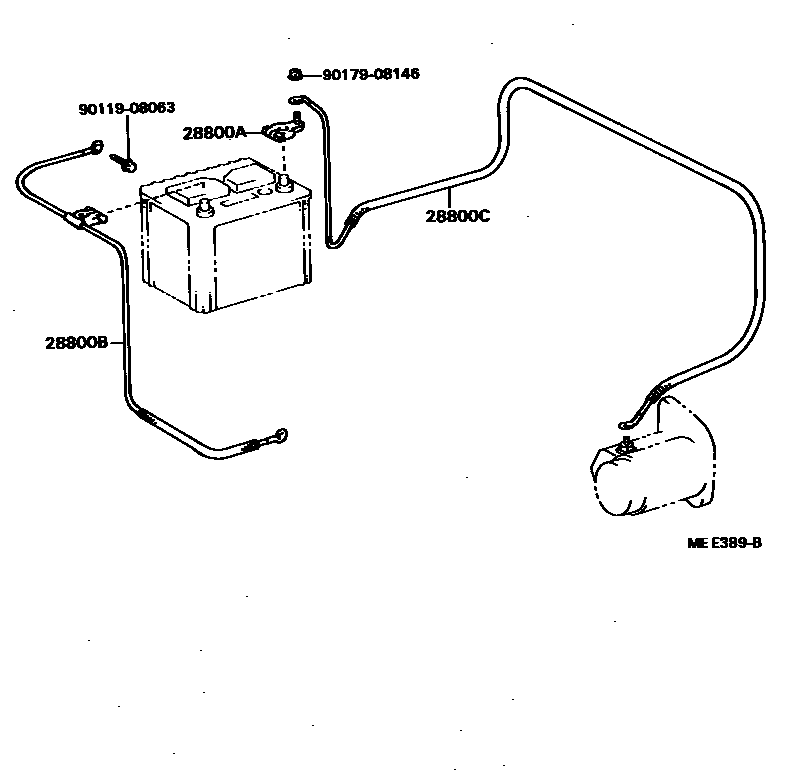

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i198405-198610

main90982-05030i198610-199002

28800BCABLE, BATTERY TO GROUND

main82123-87601i198405-198709

main82123-87603i198405-198709

W/WINCH

main82123-87606i198709-199002

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-87601i198405-198810

main82122-87604i198409-198709

main82122-87606i198709-199002

main82122-87610i198810-198911

main82122-87611i198810-198911

9011908063

main90119-08063

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota BLIZZARD

This section contains 5 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota BLIZZARD. Key components include: TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH).
