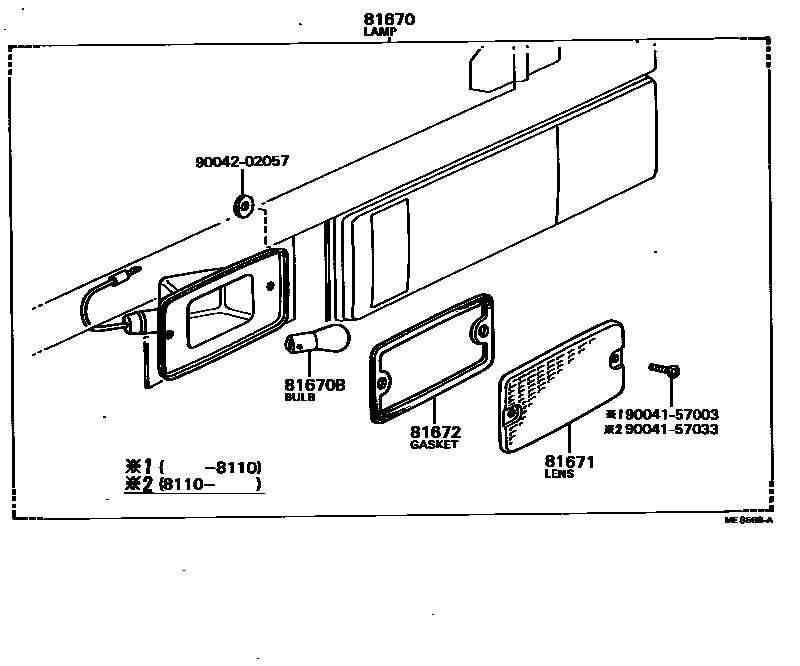

Toyota BLIZZARD — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-87601i198003-198110

main81670-87604i198110-198404

81670BBULB(FOR BACK-UP LAMP)

main90981-12002i198003-198404

12V 12W

81671LENS, BACK-UP LAMP, RH

main81671-87203i198003-198404

81672GASKET, BACK-UP LAMP LENS, RH

main81672-87203i198003-198404

9004157003

main90041-57003

9004157033

main90041-57033

9004202057

main90042-02057

7 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota BLIZZARD

This section contains 7 genuine Toyota parts for the BACK UP LAMP system of the Toyota BLIZZARD. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP LENS, RH.
