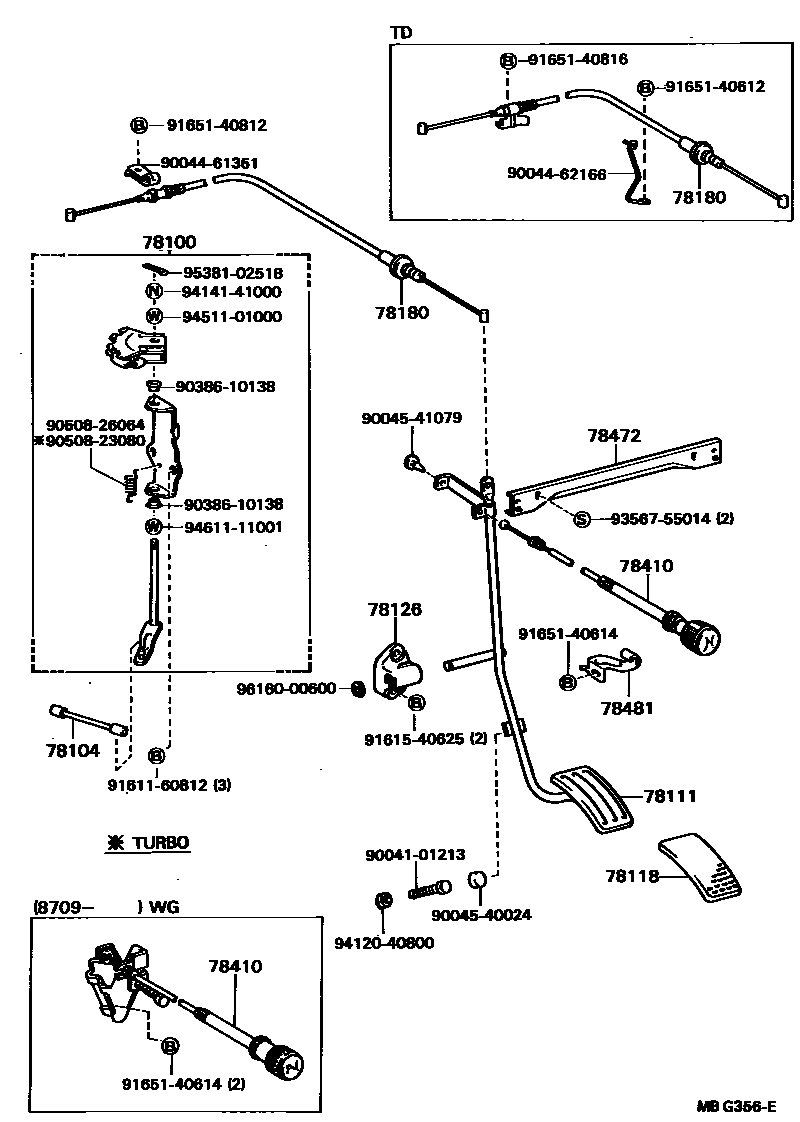

Toyota BLIZZARD — ACCELERATOR LINK

78100LINK ASSY, ACCELERATOR

main78100-87604iLD20..DSL198405-198911

main78100-89104iLD2#..TD198409-199002

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-30120iLD2#198405-199002

78111PEDAL, ACCELERATOR

main78101-87607iLD2#198405-198608

main78101-87611iLD2#198608-199002

78118PAD, ACCELERATOR PEDAL

main78119-87601iLD2#198910-199002

main78119-95700iLD2#198608-198910

78126BRACKET, ACCELERATOR PEDAL ROD

main78124-87204iLD2#198405-198810

main78124-87601iLD2#198810-199002

78180WIRE ASSY, ACCELERATOR

main78180-87623iLD20..DSL198405-198911

main78180-87624iLD2#..TD198409-199002

78410CABLE ASSY, THROTTLE CONTROL

main78401-87601iLD2#198405-198709

main78401-87604iLD20198810-198911

main78410-87603iLD21198709-198810

main78410-87605iLD21198810-199002

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-87601iLD2#198405-198810

main78472-87602iLD2#198810-198908

main78472-87604iLD2#198908-199002

78481CLAMP, THROTTLE WIRE

main78481-87602iLD2#198405-198709

9004101213

main90041-01213

9004461351

main90044-61351

9004462166

main90044-62166

9004540024

main90045-40024

9004541079

main90045-41079

9038610138

main90386-10138

9050823080

main90508-23080

9050826064

main90508-26064

9161160812

main91611-60812

9161540625

main91615-40625

9165140612

main91651-40612

9165140614

main91651-40614

9165140812

main91651-40812

9165140816

main91651-40816

9356755014

main93567-55014

9412040800

main94120-40800

9414141000

main94141-41000

9451101000

main94511-01000

9461111001

main94611-11001

9538102518

main95381-02518

9616000600

main96160-00600

30 parts on this diagram · 1 diagram in section
