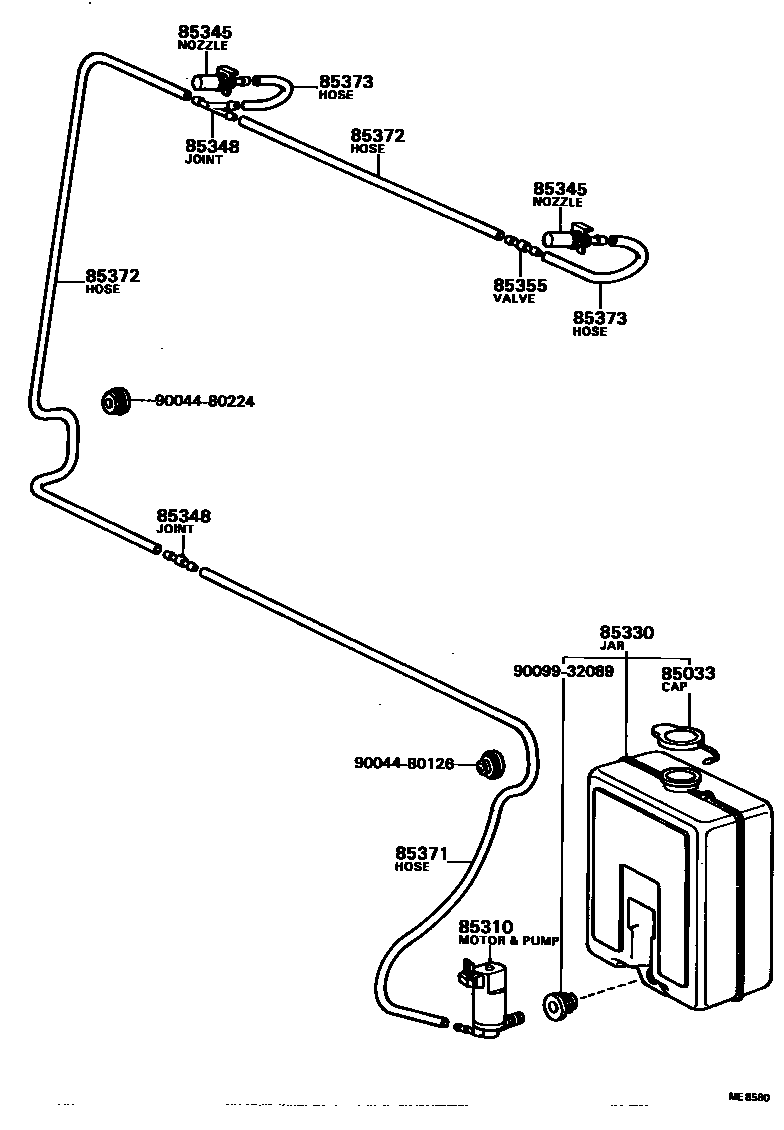

Toyota BLIZZARD — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iLD10198201-198404

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-87301iLD10198201-198404

sub85310-22080

85330JAR ASSY, WINDSHIELD WASHER

main85330-36140iLD10198201-198404

sub85330-40040

85345NOZZLE, WINDSHIELD WASHER

main85035-87001×2iLD10198201-198404

sub85035-95011

sub85342-95010

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010iLD10198201-198404

3-WAY

sub85348-12250

main85355-87201×2iLD10198201-198404

2-WAY

sub85349-89122

85355VALVE, WINDSHIELD WASHER HOSE

main85031-30010iLD10198201-198404

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90044-46329iLD10198201-198404

L=1350

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33303iLD10198201-198404

*H,L=1100

main90446-06013iLD10198201-198404

L=1450(*H,L=400)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iLD10198201-198404

L=1450(*H,L=60)

9004480126

main90044-80126

9004480224

main90044-80224

9009932089

main90099-32089

12 parts on this diagram · 1 diagram in section
