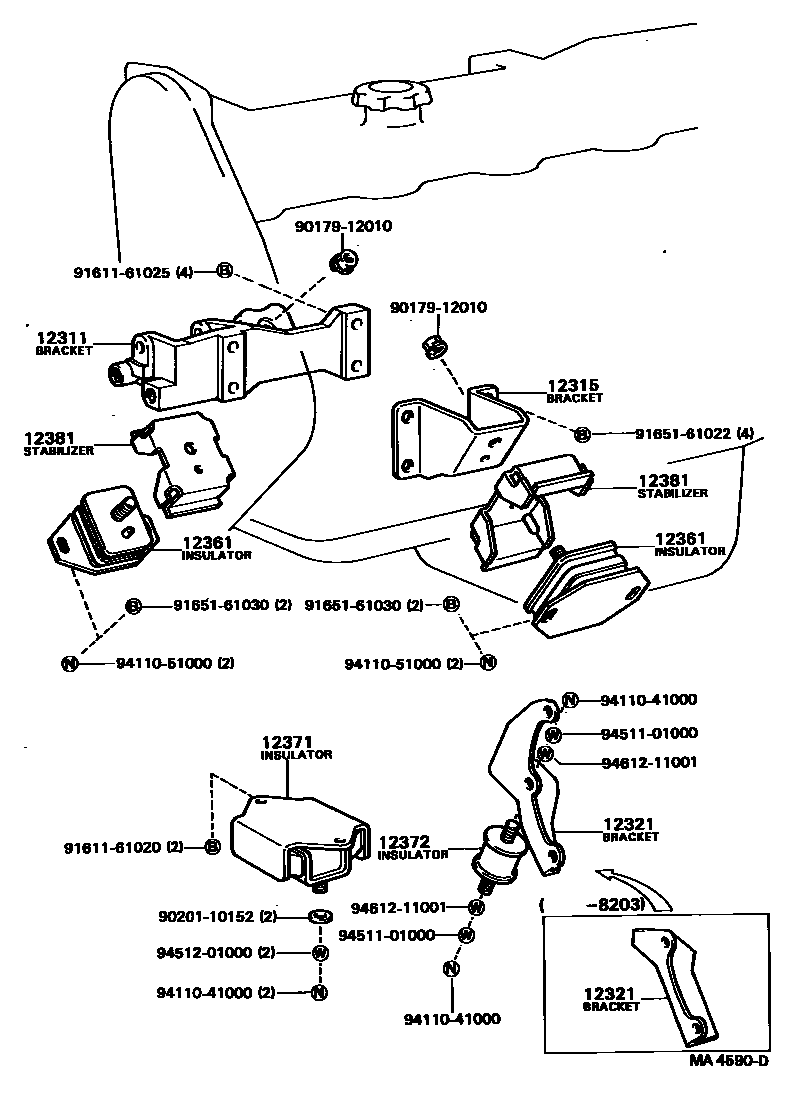

Toyota BLIZZARD — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54040iL..LD10198201-198404

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54011iL..LD10198201-198404

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12322-87605iL..LD10198201-198203

main12322-87606iL..LD10198203-198404

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54050×2iL..LD10198201-198404

sub12361-54051

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-87603iL..LD10198201-198404

12372INSULATOR, ENGINE MOUNTING, REAR NO.2

main12372-87602iL..LD10198201-198404

12381STABILIZER, ENGINE MOUNTING

main12381-54010×2iL..LD10198201-198404

9017912010

main90179-12010

9020110152

main90201-10152

9161161020

main91611-61020

9161161025

main91611-61025

9165161022

main91651-61022

9165161030

main91651-61030

9411041000

main94110-41000

9411051000

main94110-51000

9451101000

main94511-01000

9451201000

main94512-01000

9461211001

main94612-11001

18 parts on this diagram · 1 diagram in section
