Toyota BLIZZARD — METER

83110BBULB, SPEEDOMETER

main99132-11034iLD10198201-198404

12V 3.4W

83116BRACKET, SPEEDOMETER

main83116-87601iLD10198201-198404

TACHO METER

main83116-87602iLD10198201-198404

SPEEDMETER

83132ACASE, METER

main83137-87601iLD10198201-198404

83145QPACKING, METER

main83145-87601iLD10198201-198404

83180DETECTOR ASSY, REVOLUTION

main83275-87602iLD10198201-198404

83241METER SUB-ASSY, SPEED

main83104-87621iLD10198201-198404

83270TACHOMETER ASSY, ENGINE

main83201-87605iLD10198201-198404

83270BBULB, ENGINE TACHOMETER

main99132-11034×2iLD10198201-198404

12V 3.4W,12V 3.4W

83310GAGE ASSY, FUEL RECEIVER

main83310-87602iLD10198201-198404

83310BBULB, FUEL RECEIVER GAGE

main90981-11009iLD10198201-198404

12V 1.5W

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-87605iLD10198201-198404

83410BBULB, WATER TEMPERATURE RECEIVER GAGE

main90981-11009iLD10198201-198404

12V 1.5W

83610AMMETER ASSY

main83610-87601iLD10198201-198404

83610BBULB, AMMETER

main90981-11009iLD10198201-198404

12V 1.5W

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-87609iLD10198201-198404

83910CLOCK ASSY

main83910-87601iLD10198201-198404

83910BBULB, CLOCK INDICATOR

main99132-11034iLD10198201-198404

12V 3.4W,12V 3.4W

9004465410

main90044-65410

9004480127

main90044-80127

9017905095

main90179-05095

9165140614

main91651-40614

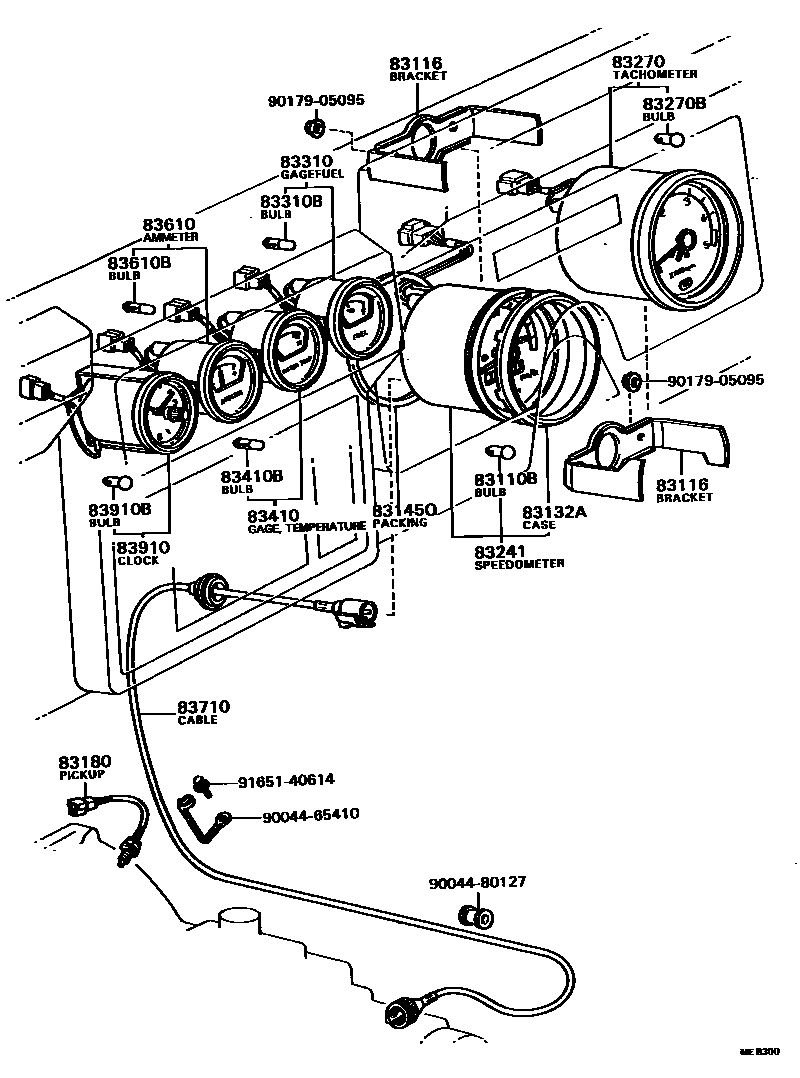

21 parts on this diagram · 1 diagram in section
