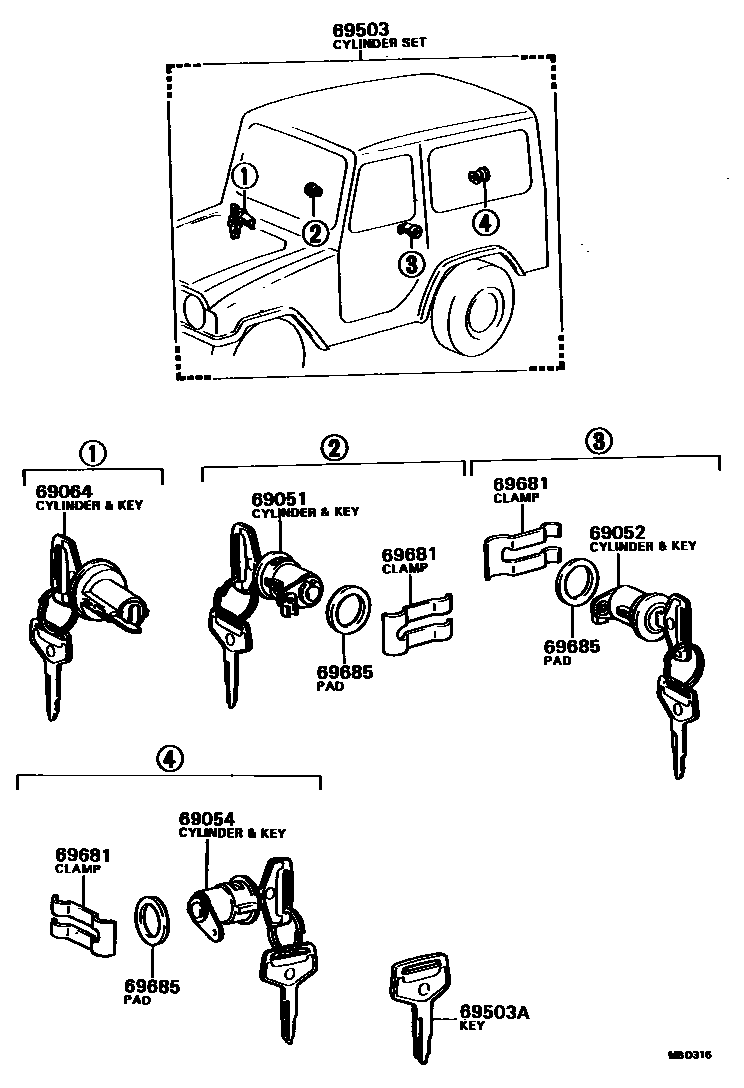

Toyota BLIZZARD — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-87604i198201-198404

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-87602i198201-198404

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69054-87603i198201-198404

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69064-87608i198201-198404

69503CYLINDER SET, LOCK

main69503-87653i198201-198404

69503AKEY, BLANK

main90999-00082i198201-198404

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-87201×3i198201-198404

69685PAD, LOCK CYLINDER

main69685-87201×3i198201-198404

DOOR

8 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota BLIZZARD

This section contains 8 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota BLIZZARD. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
