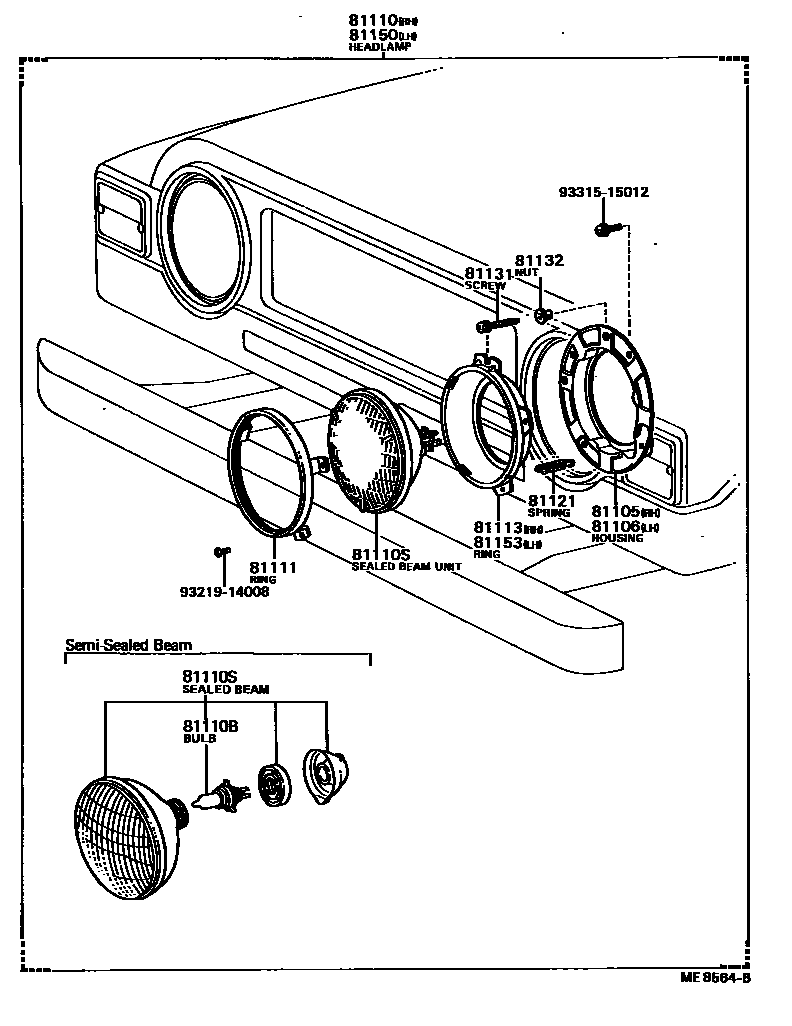

Toyota BLIZZARD — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
HALOGEN
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,*HAL *WH,12V 60/55W
81110SSEALED BEAM UNIT, NO.1
12V 60/55W,HALOGEN
81111RING, SEALED BEAM RETAINING
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81132NUT, HEADLAMP SELF LOCKING
81150HEADLAMP ASSY, LH
HALOGEN
81153RING, SEALED BEAM MOUNTING, NO.1 LH
9321914008
main93219-14008
9331515012
main93315-15012
14 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota BLIZZARD
This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota BLIZZARD. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1.
