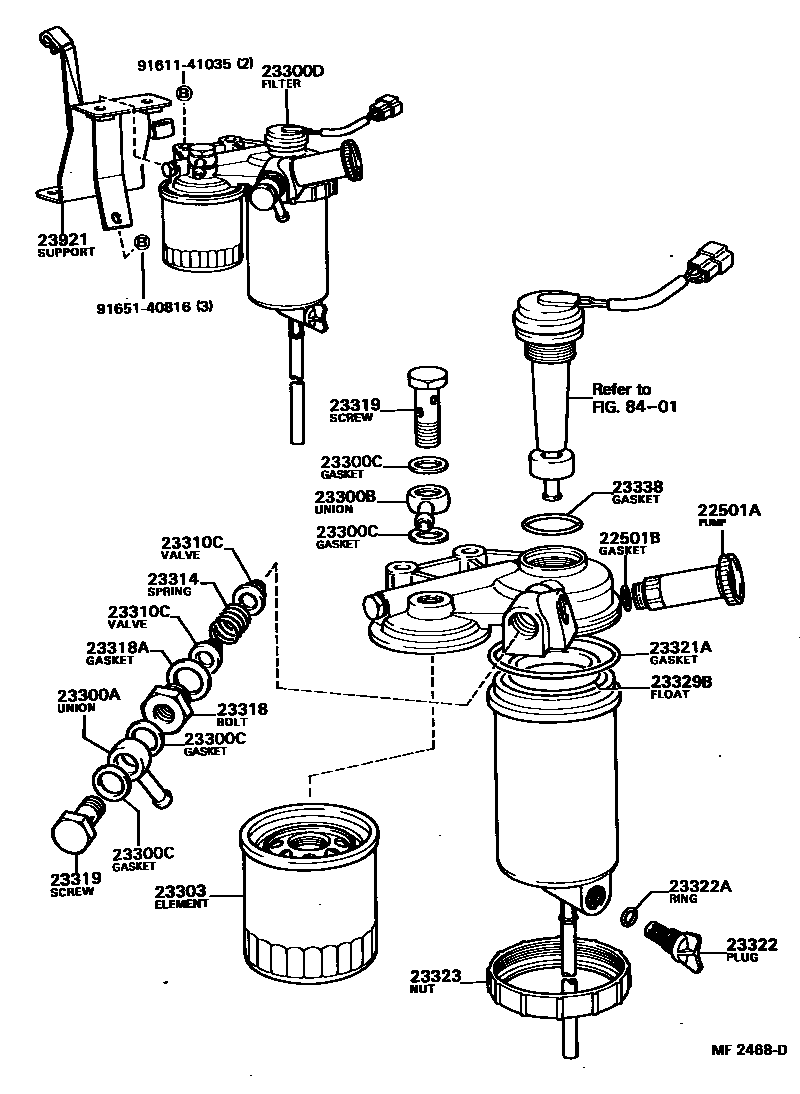

Toyota BLIZZARD — FUEL FILTER

22501APUMP SUB-ASSY, PRIMING

main22501-54010i198207-198404

22501BGASKET(FOR PRIMING PUMP)

main23344-54020i198207-198404

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016i198207-198404

main90405-08160i198201-198207

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016i198207-198404

main90405-08160i198201-198207

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030×4i198201-198404

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-87606i198201-198404

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071i198201-198404

23310CVALVE SUB-ASSY, FUEL FILTER

main23316-54010×2i198207-198404

23314SPRING, FUEL FILTER

main23314-54010i198207-198404

23318BOLT, UNION

main23323-54020i198207-198404

23318AGASKET(FOR UNION BOLT)

main15318-44010i198207-198404

23319SCREW, FUEL PIPE FOLLOW

main90099-18011×2i198201-198404

23321AGASKET, FUEL FILTER CAP

main23312-54010i198201-198404

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-54010i198201-198404

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i198201-198404

23323NUT(FOR FUEL FILTER CASE SUPPORT)

main23323-54010i198201-198404

23329BFLOAT, LEVEL WARNING

main23329-54010i198201-198404

23338GASKET(FOR WARNING SWITCH)

main23338-54010i198201-198404

23921SUPPORT, FUEL FILTER

main23205-87602i198201-198404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161141035

main91611-41035

9165140816

main91651-40816

22 parts on this diagram · 1 diagram in section

FUEL FILTER for Toyota BLIZZARD

This section contains 22 genuine Toyota parts for the FUEL FILTER system of the Toyota BLIZZARD. Key components include: PUMP SUB-ASSY, PRIMING, GASKET(FOR PRIMING PUMP), UNION, NIPPLE(FOR FUEL FILTER INLET), UNION, NIPPLE(FOR FUEL FILTER OUTLET), GASKET, NIPPLE UNION(FOR FUEL).
