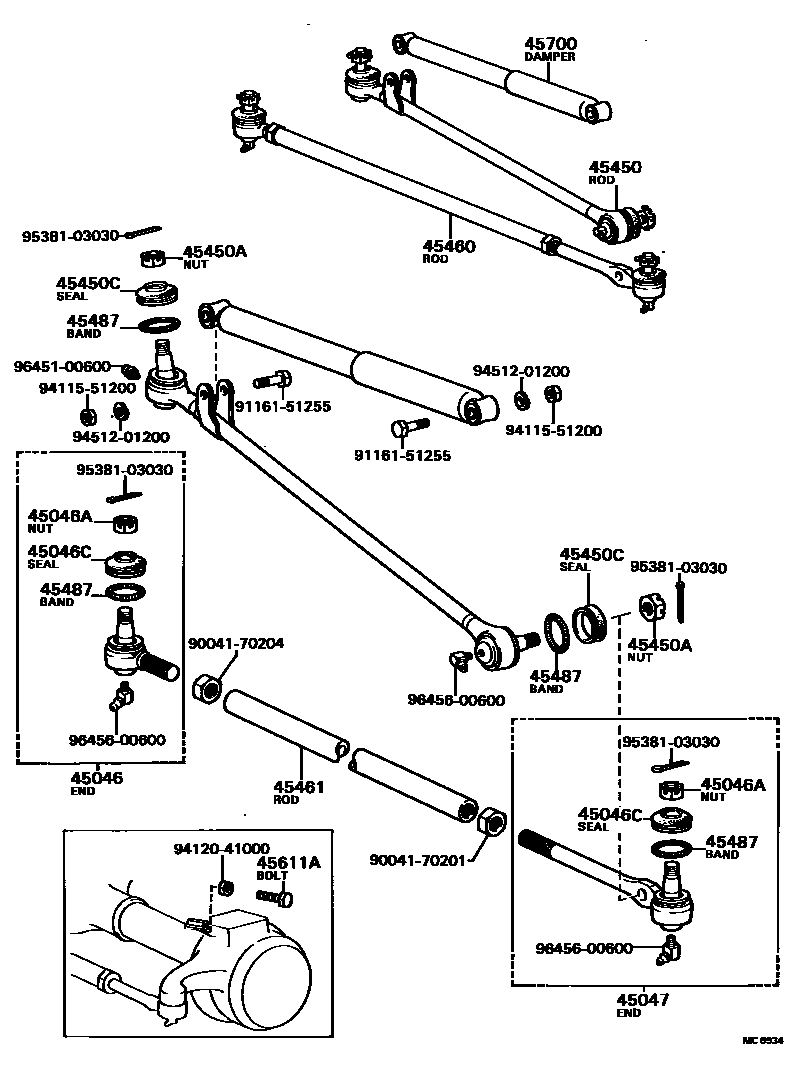

Toyota BLIZZARD — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-87680i198201-198404

45046ANUT, CASTLE(FOR TIE ROD END)

main90041-71031×2i198201-198404

45046CSEAL, DUST(FOR TIE ROD END)

main45479-87601×2i198201-198404

45047END SUB-ASSY, TIE ROD, LH

main45047-87680i198201-198404

45450ROD ASSY, STEERING RELAY

main45450-87680i198201-198404

45450ANUT, CASTLE(FOR RELAY ROD)

main90041-71031×2i198201-198404

45450CSEAL, DUST(FOR RELAY ROD)

main45479-87601×2i198201-198404

45460ROD ASSY, TIE, RH

main45460-87680i198201-198404

45461ROD, STEERING TIE

main45461-87602i198201-198404

45487BAND, STEERING LINK JOINT DUST SEAL

main45487-87601×4i198201-198404

45611ABOLT, KNUCKLE STOPPER

main90041-06002×2i198201-198404

45700DAMPER ASSY, STEERING

main45700-87604i198201-198404

9004170201

main90041-70201

9004170204

main90041-70204

9116151255

main91161-51255

9411551200

main94115-51200

9412041000

main94120-41000

9451201200

main94512-01200

9538103030

main95381-03030

9645100600

main96451-00600

9645600600

main96456-00600

21 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota BLIZZARD

This section contains 21 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota BLIZZARD. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), SEAL, DUST(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, ROD ASSY, STEERING RELAY.
