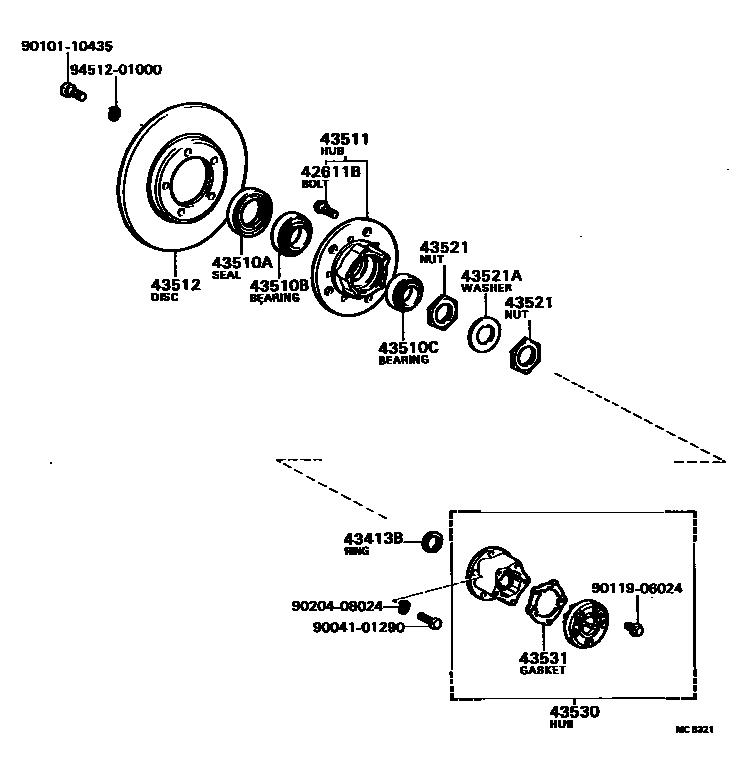

Toyota BLIZZARD — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90049-12027i198201-198404

43413BRING, DRIVE SHAFT SNAP

main90045-20075i198201-198404

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90043-11080i198201-198404

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90043-66015i198201-198404

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90043-66014i198201-198404

43511HUB, FRONT AXLE

main43502-87603i198201-198404

43512DISC, FRONT

main43512-87603i198201-198404

43521NUT, FRONT WHEEL ADJUSTING

main43521-87601i198201-198404

43521AWASHER, CLAW (FOR FRONT WHEEL ADJUSTING NUT)

main90042-14006i198201-198404

43530HUB ASSY, FREE WHEEL

main43530-69025i198201-198404

43531GASKET, FREE WHEEL HUB

main43531-87601i198201-198404

9004101290

main90041-01290

9010110435

main90101-10435

9011906024

main90119-06024

9020408024

main90204-08024

9451201000

main94512-01000

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota BLIZZARD

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota BLIZZARD. Key components include: BOLT, HUB (FOR FRONT AXLE), RING, DRIVE SHAFT SNAP, SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING).
