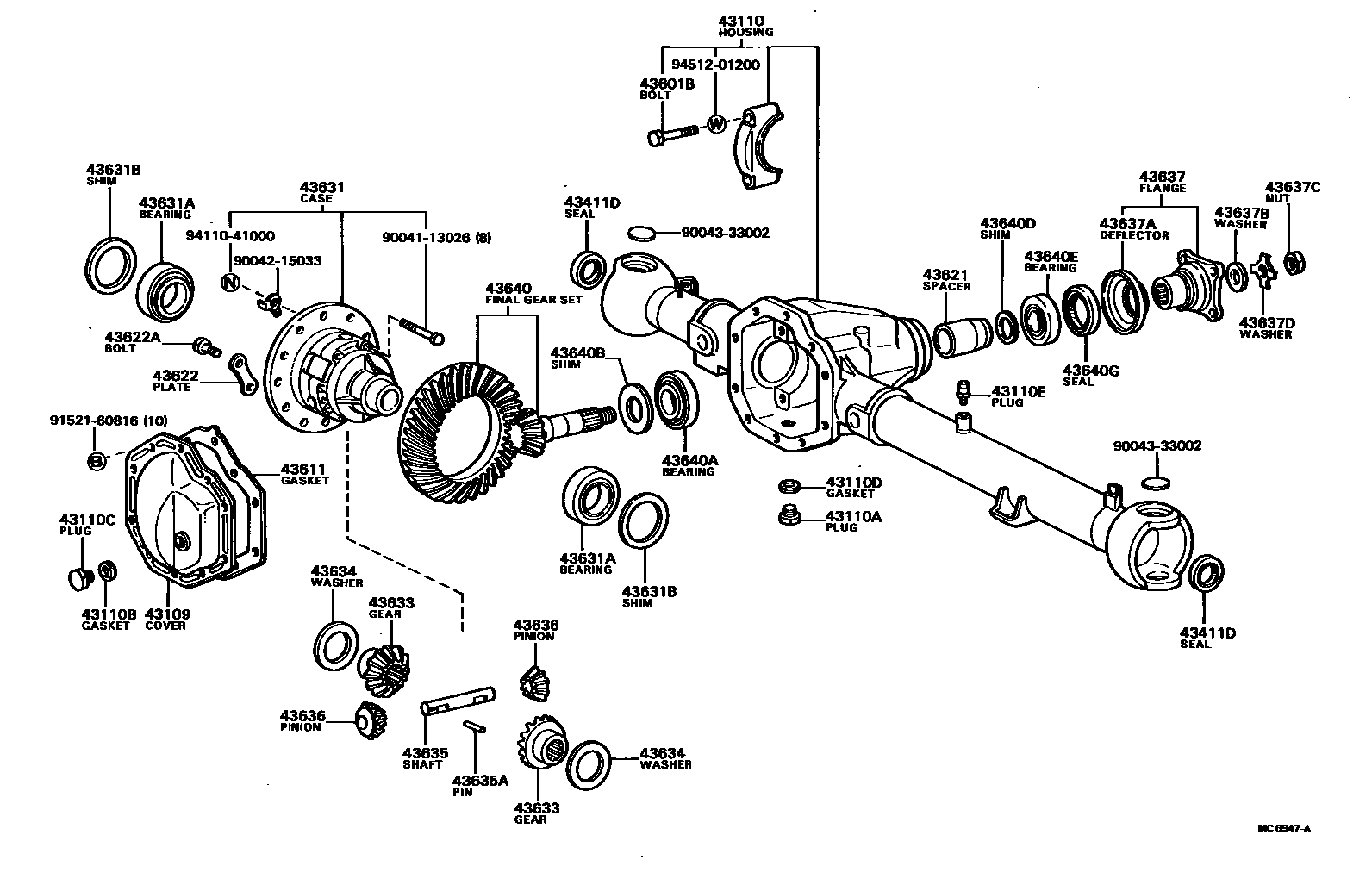

Toyota BLIZZARD — FRONT AXLE HOUSING & DIFFERENTIAL
43109COVER SUB-ASSY, FRONT AXLE HOUSING
43110HOUSING ASSY, FRONT AXLE
43110APLUG SUB-ASSY, DRAIN
43110BGASKET, DRAIN
43110CPLUG (FOR FRONT AXLE HOUSING)
43110DGASKET (FOR FRONT AXLE HOUSING PLUG)
43110EPLUG, BREATHER (FOR FRONT AXLE HOUSING)
43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)
43601BBOLT, FRONT AXLE DIFFERENTIAL BEARING CAP
43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER
43621SPACER, FRONT AXLE DIFFERENTIAL DRIVE PINION BEARING
43622PLATE, FRONT AXLE DIFFERENTIAL RING GEAR SET BOLT LOCK
43622ABOLT (FOR FRONT AXLE DIFFERENTIAL RING GEAR SET PLATE)
43631CASE, FRONT AXLE DIFFERENTIAL
43631ABEARING, FRONT AXLE DIFFERENTIAL
43631BSHIM, FRONT AXLE DIFFERENTIAL BEARING ADJUSTING
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=2.45
T=2.50
T=2.55
T=2.60
T=3.15
T=3.20
T=3.25
T=3.30
43633GEAR, FRONT AXLE DIFFERENTIAL SIDE
43634WASHER, FRONT AXLE DIFFERENTIAL SIDE GEAR THRUST
T=0.8
T=1.0
43635SHAFT, FRONT AXLE DIFFERENTIAL PINION
43635APIN, FRONT AXLE DIFFERENTIAL PINION SHAFT
43636PINION, FRONT AXLE DIFFERENTIAL
43637FLANGE, FRONT AXLE DRIVE PINION, W/DEFLECTOR
43637ADEFLECTOR, DUST (FOR FRONT AXLE)
43637BWASHER, PLATE (FOR FRONT AXLE DRIVE PINION)
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43637DWASHER, LOCK (FOR FRONT AXLE DRIVE PINION)
43640FINAL GEAR SET, FRONT AXLE DIFFERENTIAL
43640ABEARING, FRONT AXLE DRIVE PINION, FRONT
43640BSHIM, FRONT AXLE DRIVE PINION SPACER REAR ADJUST
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
T=3.35
T=0.30
43640DSHIM, FRONT AXLE DRIVE PINION SPACER FRONT ADJUST
T=0.25
T=0.30
T=0.40
T=0.50
T=0.08
43640EBEARING, FRONT AXLE DRIVE PINION, REAR
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
9004113026
main90041-13026
9004215033
main90042-15033
9004333002
main90043-33002
9152160816
main91521-60816
9411041000
main94110-41000
9451201200
main94512-01200
38 parts on this diagram · 1 diagram in section
FRONT AXLE HOUSING & DIFFERENTIAL for Toyota BLIZZARD
This section contains 38 genuine Toyota parts for the FRONT AXLE HOUSING & DIFFERENTIAL system of the Toyota BLIZZARD. Key components include: COVER SUB-ASSY, FRONT AXLE HOUSING, HOUSING ASSY, FRONT AXLE, PLUG SUB-ASSY, DRAIN, GASKET, DRAIN, PLUG (FOR FRONT AXLE HOUSING).
