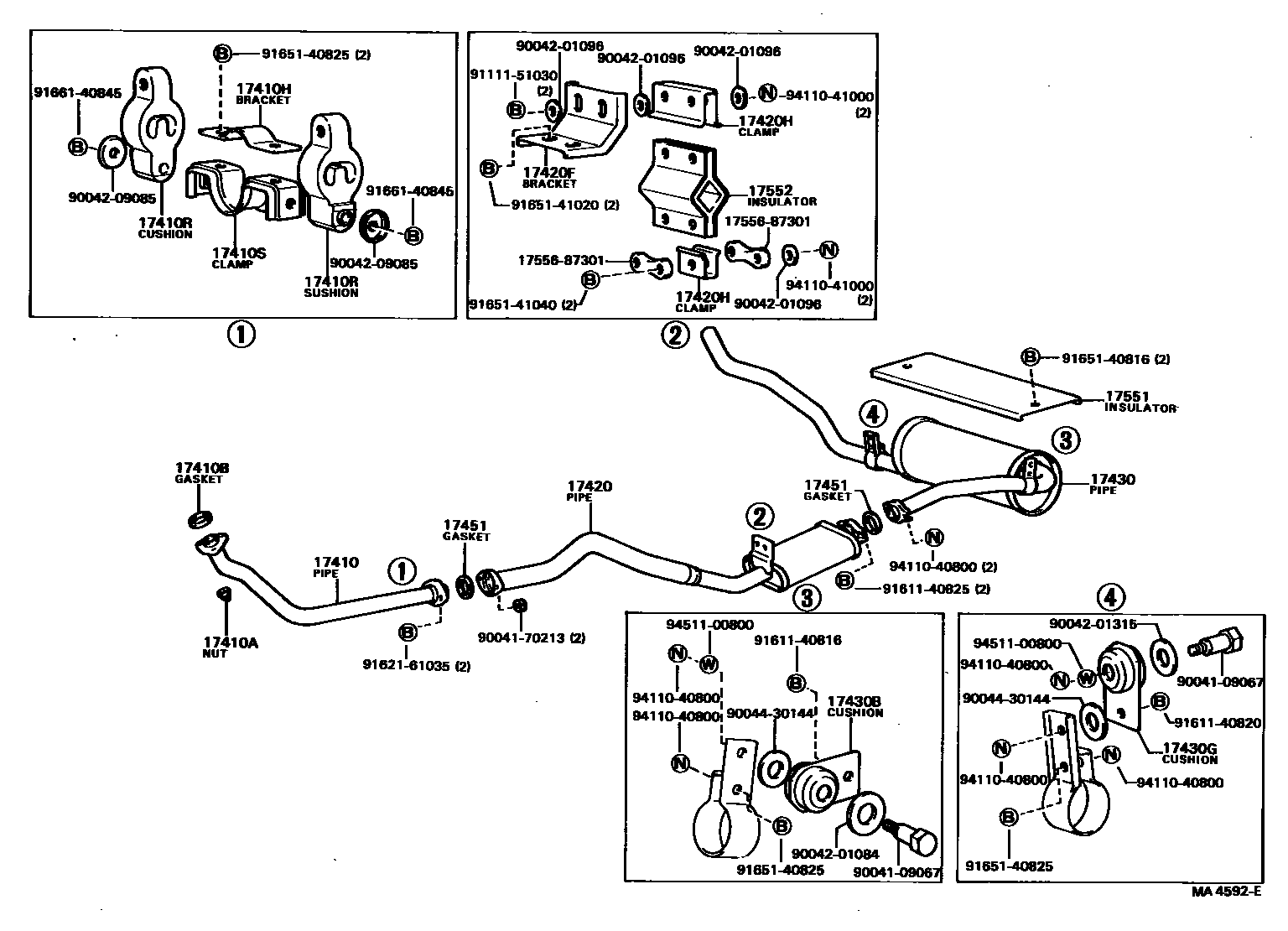

Toyota BLIZZARD — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410HBRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17410RCUSHION, EXHAUST PIPE FRONT (FOR CENTER)
17410SCLAMP NO.1, EXHAUST PIPE FRONT (FOR CENTER)
17420PIPE ASSY, EXHAUST, CENTER
17420FBRACKET, EXHAUST PIPE, CENTER
17420HCLAMP NO.1, EXHAUST PIPE CENTER, CENTER
UPR
LWR
17430PIPE ASSY, EXHAUST, TAIL
17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)
17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)
17451GASKET, EXHAUST PIPE
RR
FR
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17552INSULATOR, EXHAUST PIPE HEAT, NO.2
1755687301INSULATOR, EXHAUST PIPE HEAT, NO.6
main17556-87301
9004109067
main90041-09067
9004170213
main90041-70213
9004201084
main90042-01084
9004201096
main90042-01096
9004201315
main90042-01315
9004209085
main90042-09085
9004430144
main90044-30144
9111151030
main91111-51030
9161140816
main91611-40816
9161140820
main91611-40820
9161140825
main91611-40825
9162161035
main91621-61035
9165140816
main91651-40816
9165140825
main91651-40825
9165141020
main91651-41020
9165141040
main91651-41040
9166140845
main91661-40845
9411040800
main94110-40800
9411041000
main94110-41000
9451100800
main94511-00800
36 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota BLIZZARD
This section contains 36 genuine Toyota parts for the EXHAUST PIPE system of the Toyota BLIZZARD. Key components include: PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, BRACKET, EXHAUST PIPE FRONT (FOR CENTER), CUSHION, EXHAUST PIPE FRONT (FOR CENTER).
