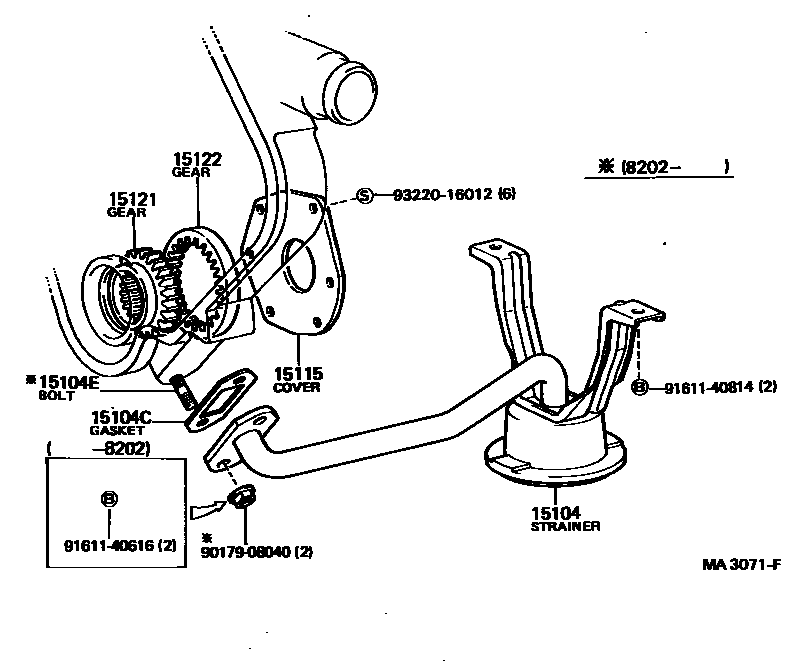

Toyota BLIZZARD — ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-54021i198201-198202

main15104-54022i198202-198404

15104CGASKET(FOR OIL STRAINER)

main15149-54010i198201-198202

main15149-54011i198202-198404

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816×2i198202-198404

15115COVER, OIL PUMP

main15115-54010i198201-198202

main15115-54011i198202-198404

15121GEAR, OIL PUMP DRIVE

main15121-38020i198201-198202

N=42

main15121-54010i198202-198404

15122GEAR, OIL PUMP DRIVEN

main15122-38020i198201-198202

N=31

main15122-54010i198202-198404

N=31

9017908040

main90179-08040

9161140616

main91611-40616

9161140814

main91611-40814

9322016012

main93220-16012

10 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota BLIZZARD

This section contains 10 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota BLIZZARD. Key components include: STRAINER SUB-ASSY, OIL, GASKET(FOR OIL STRAINER), BOLT, STUD(FOR OIL STRAINER), COVER, OIL PUMP, GEAR, OIL PUMP DRIVE.
