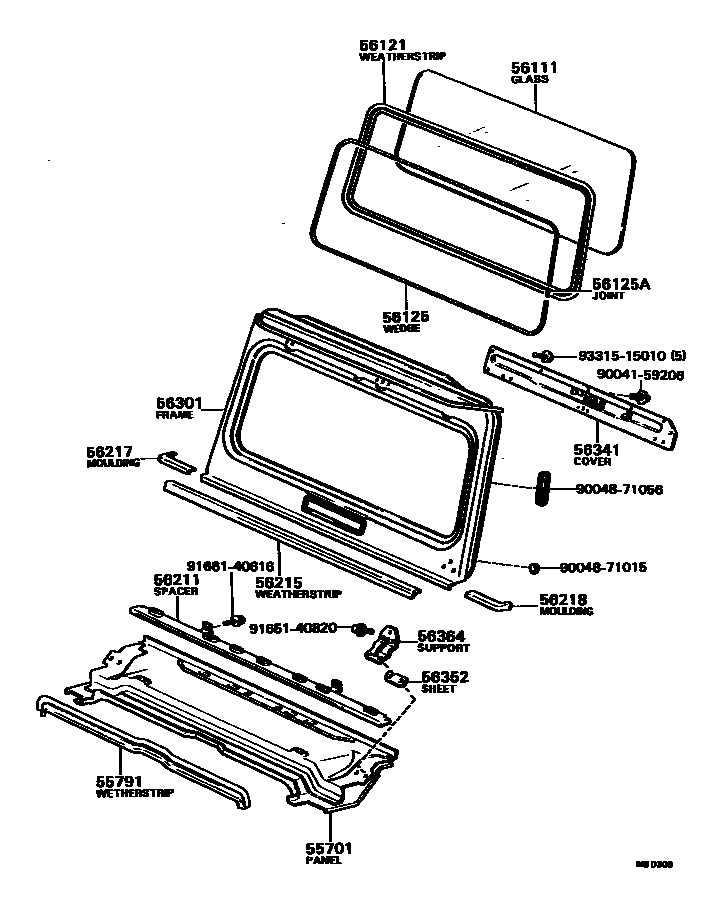

Toyota BLIZZARD — COWL PANEL & WINDSHIELD GLASS
55701PANEL SUB-ASSY, COWL
55791WEATHERSTRIP, HOOD TO COWL TOP
56111GLASS, WINDSHIELD
*LAM,T=6.7
56121WEATHERSTRIP, WINDSHIELD
56125WEDGE, WINDSHIELD WEATHERSTRIP
56125AJOINT(FOR WINDSHIELD WEDGE)
56211SPACER, WINDSHIELD
56215WEATHERSTRIP, TO SPACER WINDSHIELD
sub56215-87604
56217MOULDING WINDSHIELD SPACER,RH
56218MOULDING WINDSHIELD SPACER,LH
56301FRAME SUB-ASSY, WINDSHIELD
56341COVER, WINDSHIELD WIPER HOLE
56352SHEET, WINDSHIELD HINGE, MALE
56364SUPPORT, WINDSHIELD
9004159206
main90041-59206
9004871015
main90048-71015
9004871056
main90048-71056
9165140820
main91651-40820
9166140616
main91661-40616
9331515010
main93315-15010
20 parts on this diagram · 1 diagram in section
