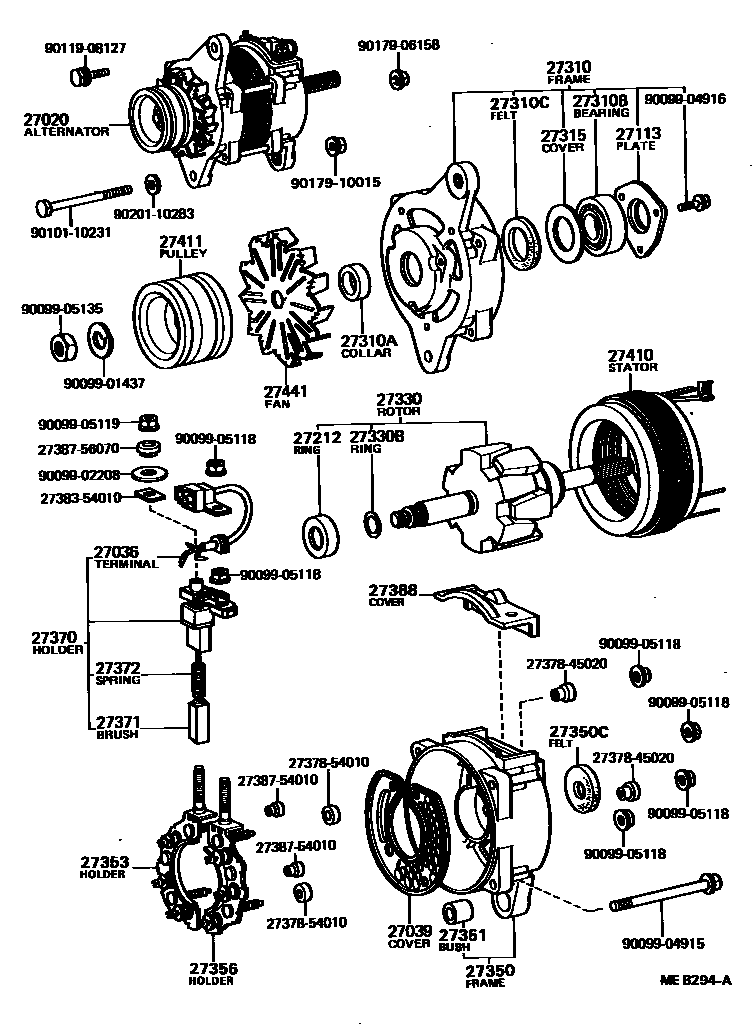

Toyota BLIZZARD — ALTERNATOR

27020ALTERNATOR ASSY

main27020-54021i198201-198210

12V 40A,12V 40A

main27020-54110i198210-198404

12V 40A,12V 40A

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

main27036-54010i198201-198404

12V 40A

27039COVER, ALTERNATOR REAR END

main27039-56090i198201-198210

12V 40A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-56070i198201-198210

12V 40A

main27312-57060i198210-198404

12V 40A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i198210-198404

12V 40A

main27412-54040i198201-198210

12V 40A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54012i198201-198210

12V 40A

main27310-54110i198210-198404

12V 40A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-57060i198210-198404

12V 40A

main90099-19251i198201-198210

12V 40A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120i198201-198210

12V 40A

main90099-10137i198210-198404

12V 40A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02207i198201-198210

12V 40A

main90099-02209×2i198210-198404

12V 40A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27315-56070i198201-198210

12V 40A

main27315-57060i198210-198404

12V 40A

27330ROTOR ASSY, ALTERNATOR

main27330-54040i198201-198210

12V 40A

main27330-56140i198210-198404

12V 40A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07103i198210-198404

12V 40A

main90099-07108i198201-198210

12V 40A

27350FRAME ASSY, RECTIFIER END

main27350-54010i198201-198210

12V 40A

main27350-56140i198210-198404

12V 40A

27350CFELT (FOR ALTERNATOR RECTIFIER END FRAME)

main90099-02181i198201-198210

12V 40A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-56013i198201-198404

12V 40A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-54020i198201-198404

12V 40A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-54020i198201-198404

12V 40A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-54010i198201-198404

12V 40A

27371BRUSH, ALTERNATOR

main27371-56070×2i198201-198404

12V 40A

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i198201-198404

12V 40A

27388COVER, ALTERNATOR BRUSH

main27388-56090i198201-198210

12V 40A

main27388-64010i198210-198404

12V 40A

27410STATOR ASSY, ALTERNATOR

main27410-54020i198201-198210

12V 40A

main27410-57060i198210-198404

12V 40A

27411PULLEY, ALTERNATOR

main27411-54020i198201-198210

12V 40A

main27411-54040i198201-198210

12V 40A,W/COOLER

main27411-54050i198210-198404

12V 40A,W/COOLER

main27411-56090i198210-198404

12V 40A

27441FAN, ALTERNATOR

main27441-54040i198201-198210

12V 40A

main27441-56090i198210-198404

12V 40A

2737845020INSULATOR, ALTERNATOR, NO.1

main27378-45020

2737854010INSULATOR, ALTERNATOR, NO.1

main27378-54010

2738354010WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-54010

2738754010INSULATOR, TERMINAL

main27387-54010

2738756070INSULATOR, TERMINAL

main27387-56070

9009901437

main90099-01437

9009902208

main90099-02208

9009904915

main90099-04915

9009904916

main90099-04916

9009905118

main90099-05118

9009905119

main90099-05119

9009905135

main90099-05135

9010110231

main90101-10231

9011908127

main90119-08127

9017906158

main90179-06158

9017910015

main90179-10015

9020110283

main90201-10283

41 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota BLIZZARD

This section contains 45 genuine Toyota parts for the ALTERNATOR system of the Toyota BLIZZARD. Key components include: ALTERNATOR ASSY, TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR, COVER, ALTERNATOR REAR END, PLATE, BEARING RETAINER, ALTERNATOR, RING, SPACE(FOR ALTERNATOR ROTOR).
