Toyota BLIZZARD — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120i198201-198404

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-87301i198201-198404

85330JAR ASSY, WINDSHIELD WASHER

main85330-36140i198201-198404

85345NOZZLE, WINDSHIELD WASHER

main85035-87001×2i198201-198404

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010i198201-198404

3-WAY

main85355-87201×2i198201-198404

2-WAY

85355VALVE, WINDSHIELD WASHER HOSE

main85031-30010i198201-198404

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90044-46329i198201-198404

L=1350

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33303i198201-198404

*H,L=1100

main90446-06013i198201-198404

L=1450(*H,L=400)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013i198201-198404

L=1450(*H,L=60)

9004480126

main90044-80126

9004480224

main90044-80224

9009932089

main90099-32089

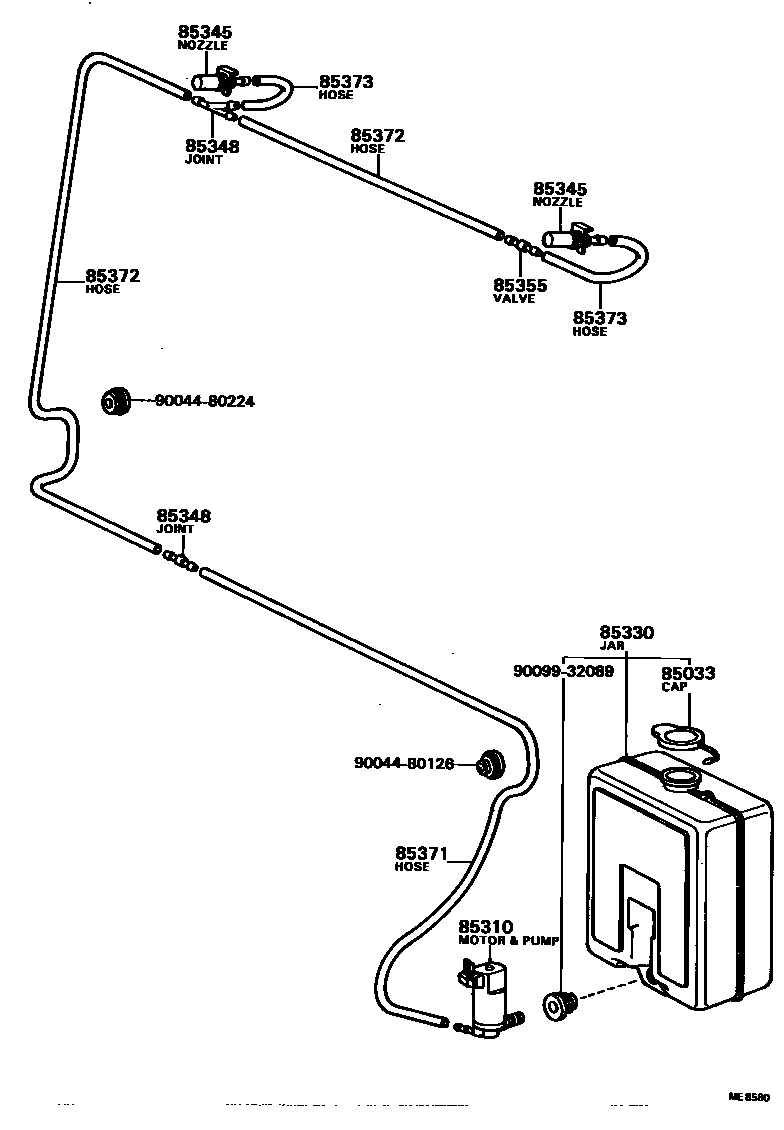

12 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota BLIZZARD

This section contains 12 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota BLIZZARD. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, NOZZLE, WINDSHIELD WASHER, JOINT, WINDSHIELD WASHER HOSE, NO.1.
