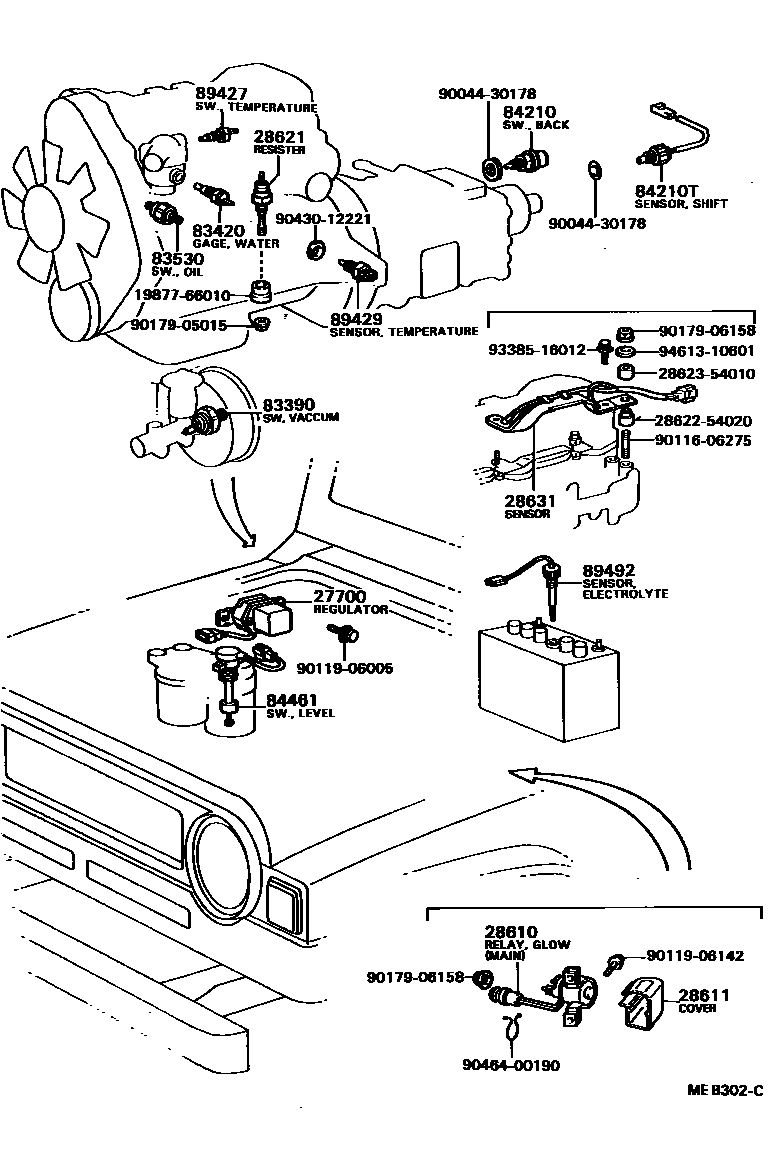

Toyota BLIZZARD — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1

27700REGULATOR ASSY, GENERATOR

main27700-15011iL..LD10198201-198404

sub27700-15040

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-54080iL..LD10198201-198404

MAIN RELAY

main28610-54090iL..LD10198201-198404

SUB RELAY

28611COVER, GLOW PLUG RELAY

main28611-54011iL..LD10198201-198404

28621RESISTOR, GLOW PLUG

main28621-54031iL..LD10198201-198404

sub28621-64011

28631SENSOR, GLOW PLUG CURRENT

main28631-54010iL..LD10198201-198404

83390SWITCH ASSY, VACUUM WARNING

main83390-30020iLD10198201-198404

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iLD10198201-198404

sub83420-20020

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-36011iLD10198201-198404

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-87303iLD10198201-198404

sub84210-87601

84210TSENSOR ASSY, SHIFT POINT

main84220-87603iLD10198210-198404

84461SWITCH, LEVEL WARNING

main84461-30030iLD10198201-198404

sub84461-30040

89427SWITCH, TEMPERATURE DETECT

main83430-96440iLD10198201-198404

W/COOLER

sub89428-60040

89429SENSOR, OIL TEMPERATURE

main89422-30020iLD10198201-198404

sub89422-12010

89492SENSOR, ELECTROLYTE LEVEL

main89492-87303iLD10198201-198404

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9004430178

main90044-30178

9011606275

main90116-06275

9011906005

main90119-06005

9011906142

main90119-06142

9017905015

main90179-05015

9017906158

main90179-06158

9043012221

main90430-12221

9046400190

main90464-00190

9338516012

main93385-16012

9461310601

main94613-10601

27 parts on this diagram · 3 diagrams in section
