Toyota BLIZZARD — SIDE WINDOW

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62713-87603×2iLD10198201-198404

*TEM,T=4.0

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62714-87603×2iLD10198201-198404

*TEM,T=4.0

62691APACKING, SIDE WINDOW LOCK, NO.1

main62782-87502×2iLD10198201-198404

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62781-87502×2iLD10198201-198404

62695LOCK, SIDE WINDOW, NO.5 GLASS (FOR SLIDE TYPE)

main62780-87501iLD10198201-198404

LH

main62790-87501iLD10198201-198404

RH

62701FRAME SUB-ASSY, REAR SIDE WINDOW, RH

main62701-87602iLD10198201-198404

62702FRAME SUB-ASSY, REAR SIDE WINDOW, LH

main62702-87602iLD10198201-198404

62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1

main62746-87502×2iLD10198201-198404

62748CHANNEL, SIDE WINDOW GLASS

main62747-87501×2iLD10198201-198404

62761AWEATHERSTRIP, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62753-87602iLD10198201-198404

RH

main62754-87602iLD10198201-198404

LH

62765RUN, SIDE WINDOW, NO.5(FOR SLIDE TYPE)

main62762-87602×2iLD10198201-198404

9353054016

main93530-54016

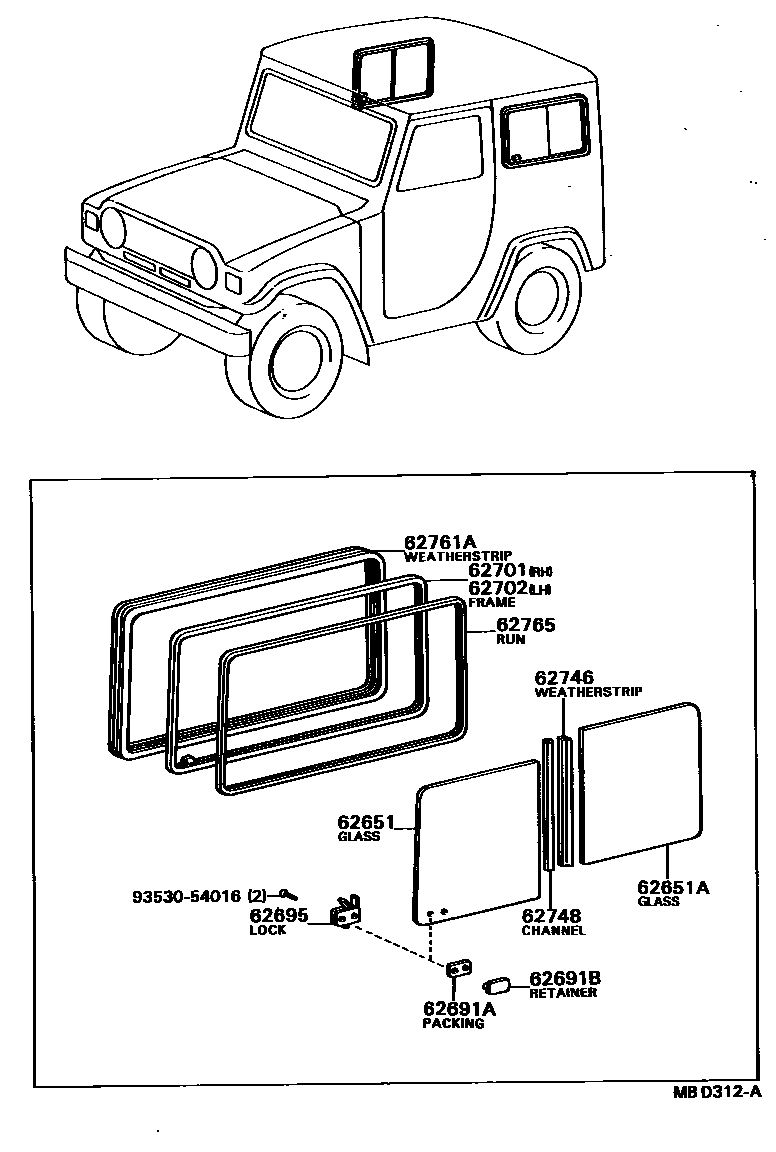

12 parts on this diagram · 1 diagram in section
