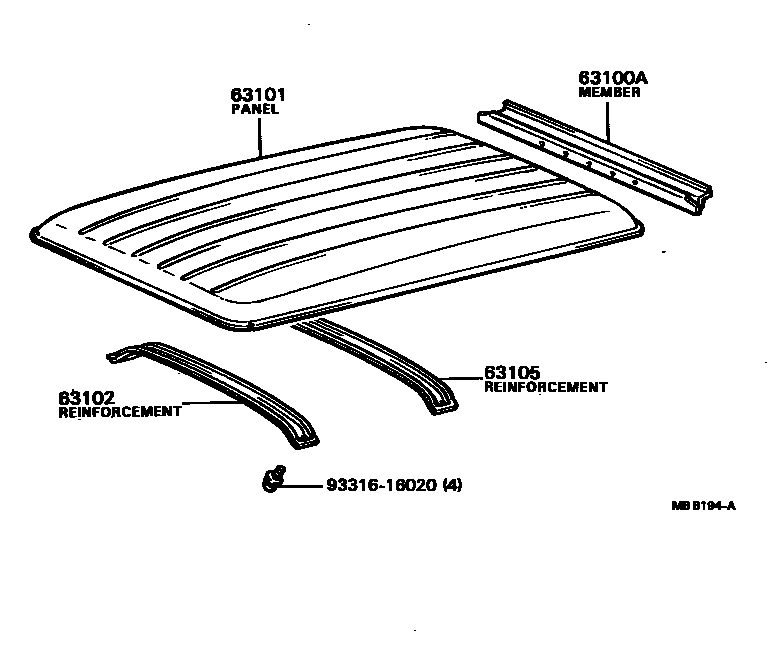

Toyota BLIZZARD — ROOF PANEL & BACK PANEL

63100AMEMBER, BACK DOOR OPENING, UPPER

main61621-87603iLD10198201-198404

63101PANEL SUB-ASSY, ROOF

main63111-87605iLD10198201-198404

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63321-87606iLD10198201-198404

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63321-87606iLD10198201-198404

9331616020

main93316-16020

5 parts on this diagram · 1 diagram in section
