Toyota BLIZZARD — PARTIAL ENGINE ASSEMBLY

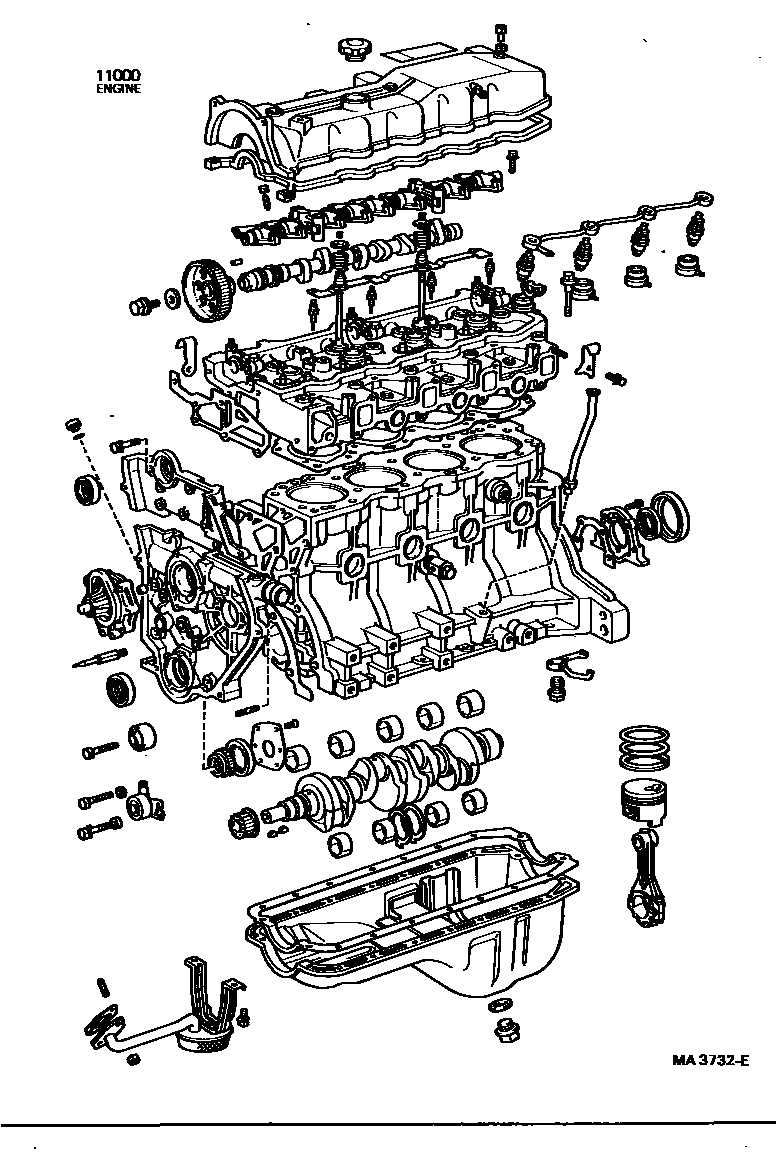

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-54083i198201-198202
main19000-54084i198202-198204
sub11321-54014
sub13568-54050
sub13613-54020
sub90109-08087
sub90170-08184
sub94611-10800
main19000-54085i198204-198205
sub11321-54014
sub13568-54050
sub13613-54020
main19000-54086i198205-198308
main19000-54280i198308-198404
sub19000-54281

1 parts on this diagram · 1 diagram in section
