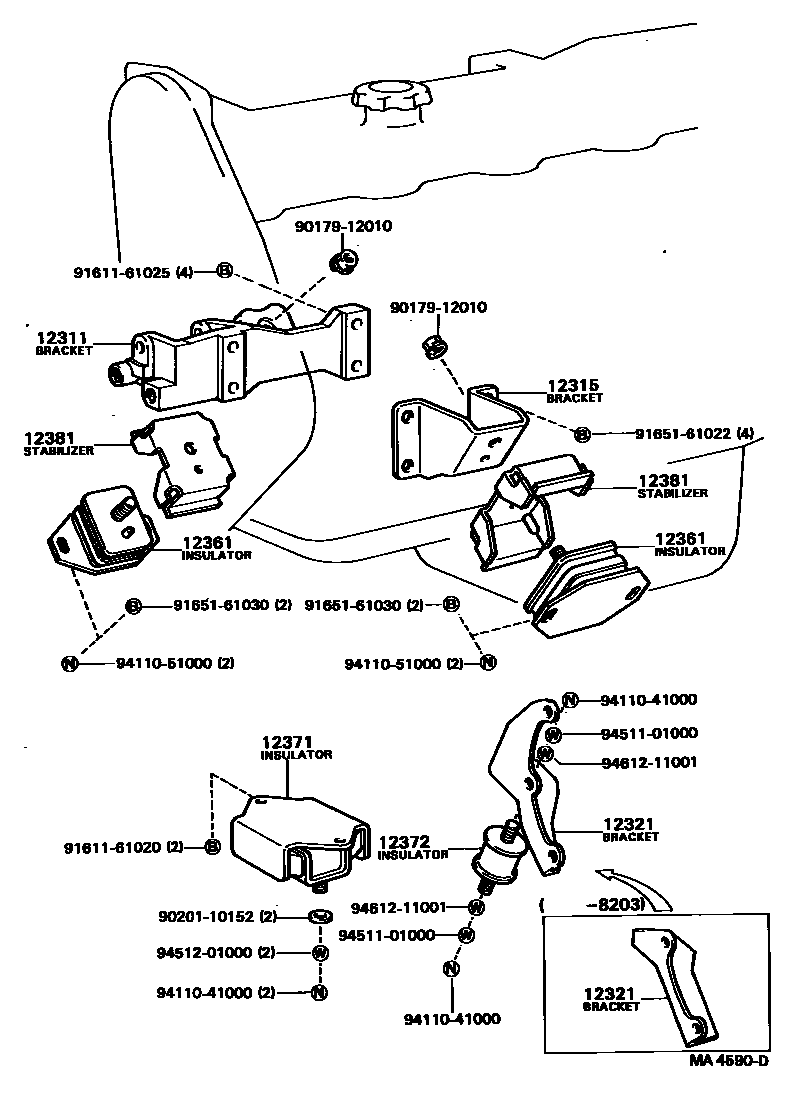

Toyota BLIZZARD — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12372INSULATOR, ENGINE MOUNTING, REAR NO.2
12381STABILIZER, ENGINE MOUNTING
9017912010
main90179-12010
9020110152
main90201-10152
9161161020
main91611-61020
9161161025
main91611-61025
9165161022
main91651-61022
9165161030
main91651-61030
9411041000
main94110-41000
9411051000
main94110-51000
9451101000
main94511-01000
9451201000
main94512-01000
9461211001
main94612-11001
18 parts on this diagram · 1 diagram in section
MOUNTING for Toyota BLIZZARD
This section contains 18 genuine Toyota parts for the MOUNTING system of the Toyota BLIZZARD. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
