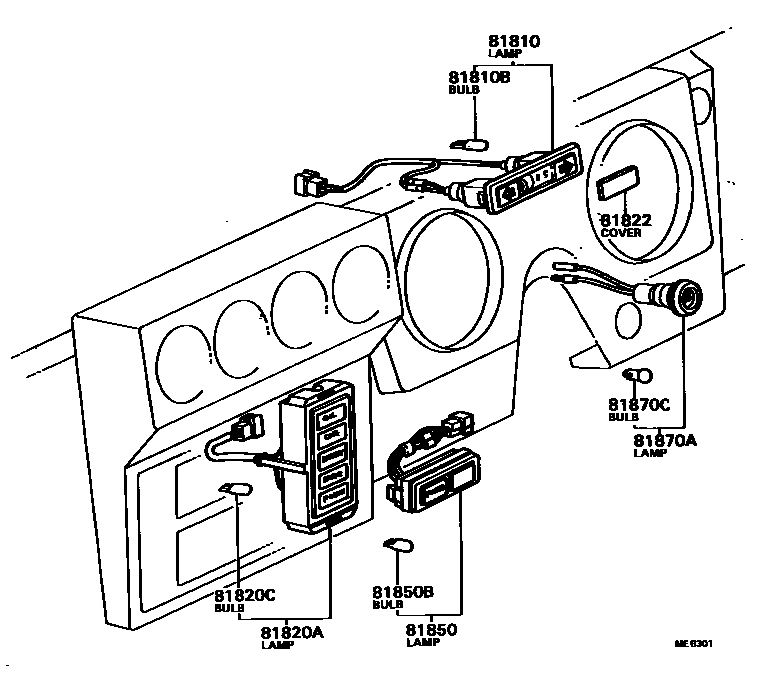

Toyota BLIZZARD — INDICATOR

81810LAMP ASSY, TURN SIGNAL INDICATOR

main81810-87604iLD10198201-198404

81810BBULB, TURN SIGNAL INDICATOR LAMP

main99132-12034×2iLD10198201-198404

12V 3.4W

81820CBULB, CONDITION INDICATOR LAMP

main90049-51036×5iLD10198201-198404

12V 1.2W

81822COVER, INDICATOR LAMP

main81822-87601iLD10198201-198404

81850LAMP ASSY, INDICATOR

main81860-87603iLD10198210-198404

81850BBULB, INDICATOR LAMP

main99132-12034iLD10198210-198404

12V 3.4W

81870ALAMP ASSY, TIMING BELT WARNING

main81870-87602iLD10198201-198404

81870CBULB, TIMING BELT WARNING LAMP

main99132-11034iLD10198201-198404

12V 3.4W

8 parts on this diagram · 1 diagram in section
