Toyota BLIZZARD — HEATING & AIR CONDITIONING - COMPRESSOR
88301ROTOR SUB-ASSY, MAGNET CLUTCH
88302STATOR SUB-ASSY, MAGNET CLUTCH
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88320COMPRESSOR ASSY, COOLER
88330CLUTCH ASSY, MAGNET
88330BBEARING, MAGNET CLUTCH
88330CRING, SNAP (FOR MAGNET CLUTCH)
88403HUB SUB-ASSY, MAGNET CLUTCH
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88432BRACKET, COMPRESSOR MOUNTING, NO.2
88444BRACKET, IDLE PULLEY
88445BRACKET, IDLE PULLEY
88595PULLEY, COOLER COMPRESSOR IDLE
1634354010GASKET, WATER OUTLET HOUSING
main16343-54010
8889914030COVER, EVAPORATOR
main88899-14030
9112160850
main91121-60850
9112160880
main91121-60880
9161161025
main91611-61025
9161161030
main91611-61030
9161161040
main91611-61040
9161161045
main91611-61045
9161161230
main91611-61230
9165161025
main91651-61025
9451100800
main94511-00800

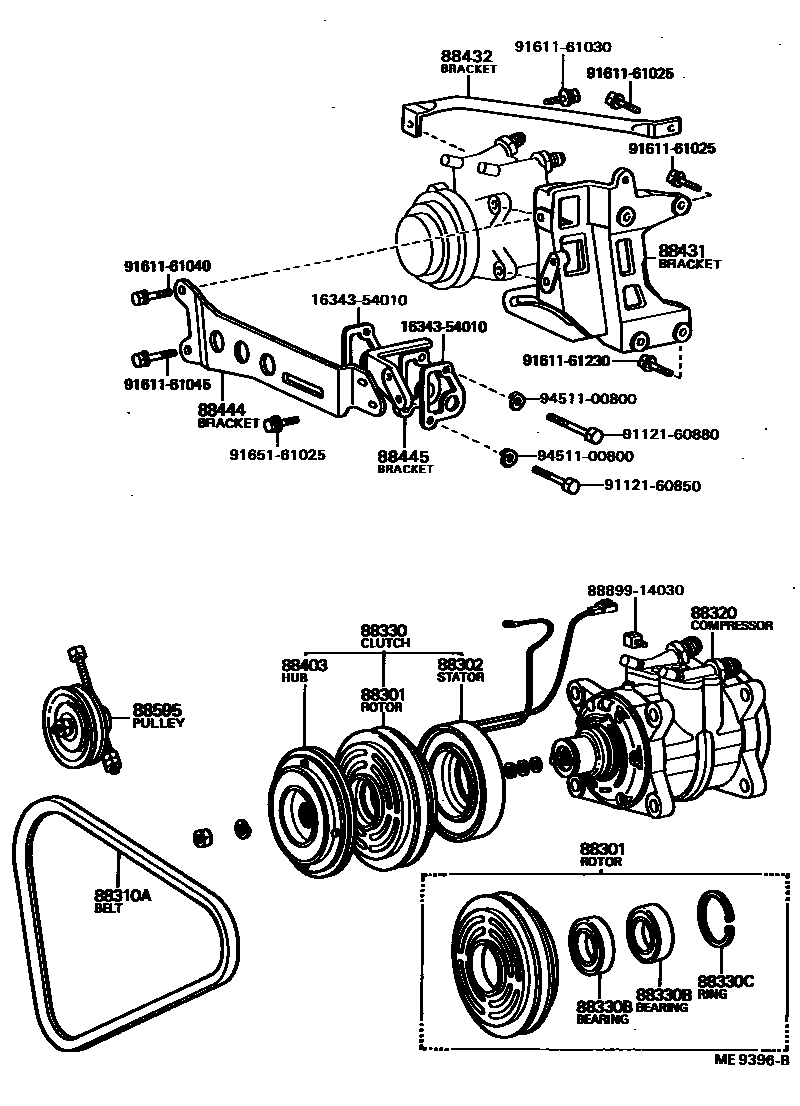

24 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota BLIZZARD
This section contains 46 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota BLIZZARD. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, CYLINDER SUB-ASSY, COOLER COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1, CRANKSHAFT, COOLER COMPRESSOR.
