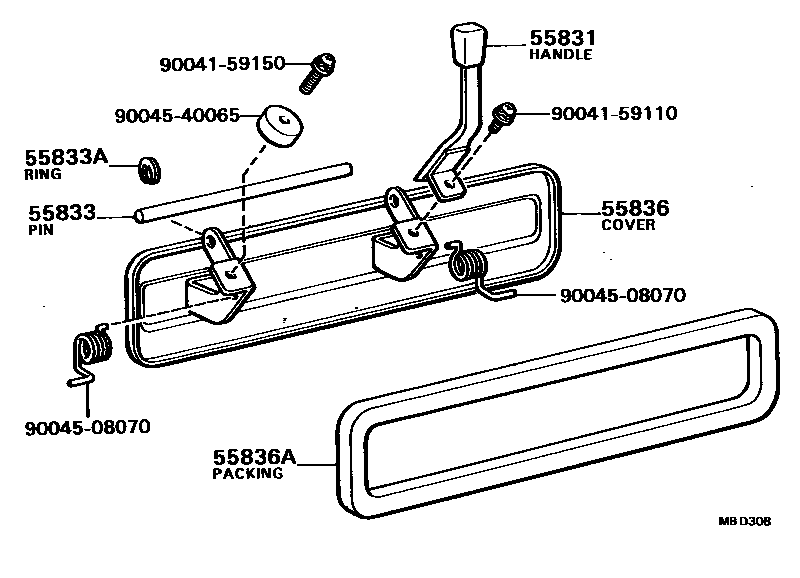

Toyota BLIZZARD — FRONT VENTILATOR

55831HANDLE OR LEVER, VENTILATOR SHUTTER

main55805-87601i198201-198404

55833PIN, FRONT VENTILATOR SUPPORT

main90042-49054i198201-198404

55833ARING, RETAINING(FOR FRONT VENTILATOR SUPPORT PIN)

main96160-00600×2i198201-198404

55836COVER, FRONT VENTILATOR OR FRONT VENTILATOR, LOWER

main55801-87602i198201-198404

55836APACKING, FRONT VENTILATOR COVER

main55815-87601i198201-198404

9004159110

main90041-59110

9004159150

main90041-59150

9004508070

main90045-08070

9004540065

main90045-40065

9 parts on this diagram · 1 diagram in section

FRONT VENTILATOR for Toyota BLIZZARD

This section contains 9 genuine Toyota parts for the FRONT VENTILATOR system of the Toyota BLIZZARD. Key components include: HANDLE OR LEVER, VENTILATOR SHUTTER, PIN, FRONT VENTILATOR SUPPORT, RING, RETAINING(FOR FRONT VENTILATOR SUPPORT PIN), COVER, FRONT VENTILATOR OR FRONT VENTILATOR, LOWER, PACKING, FRONT VENTILATOR COVER.
