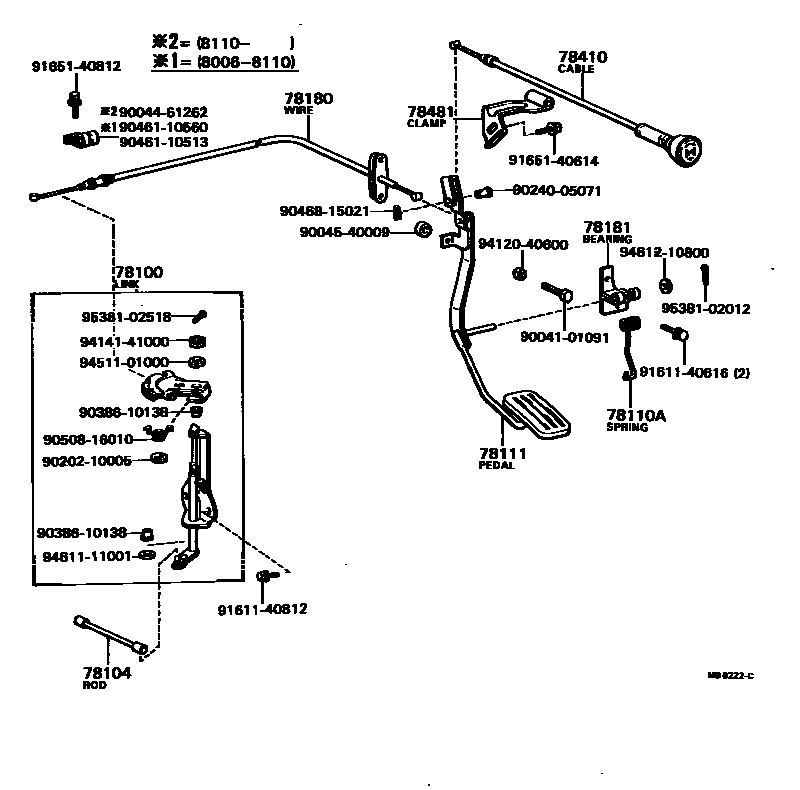

Toyota BLIZZARD — ACCELERATOR LINK

78100LINK ASSY, ACCELERATOR

main78100-87602iLD10198201-198210

main78100-87603iLD10198210-198404

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-30120iLD10198201-198404

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90045-08074iLD10198201-198404

78111PEDAL, ACCELERATOR

main78101-87604iLD10198201-198404

78180WIRE ASSY, ACCELERATOR

main78180-87615iLD10198201-198404

78181BEARING, ACCELERATOR PEDAL ROD SUPPORT

main78112-87601iLD10198201-198404

78410CABLE ASSY, THROTTLE CONTROL

main78410-87602iLD10198201-198404

78481CLAMP, THROTTLE WIRE

main78481-87601iLD10198201-198404

9004101091

main90041-01091

9004461262

main90044-61262

9004540009

main90045-40009

9020210005

main90202-10005

9024005071

main90240-05071

9038610138

main90386-10138

9046110513

main90461-10513

9046110560

main90461-10560

9046815021

main90468-15021

9050816010

main90508-16010

9161140616

main91611-40616

9161140812

main91611-40812

9165140614

main91651-40614

9165140812

main91651-40812

9412040600

main94120-40600

9414141000

main94141-41000

9451101000

main94511-01000

9461111001

main94611-11001

9461210800

main94612-10800

9538102012

main95381-02012

9538102518

main95381-02518

29 parts on this diagram · 1 diagram in section
