Toyota BLADE — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

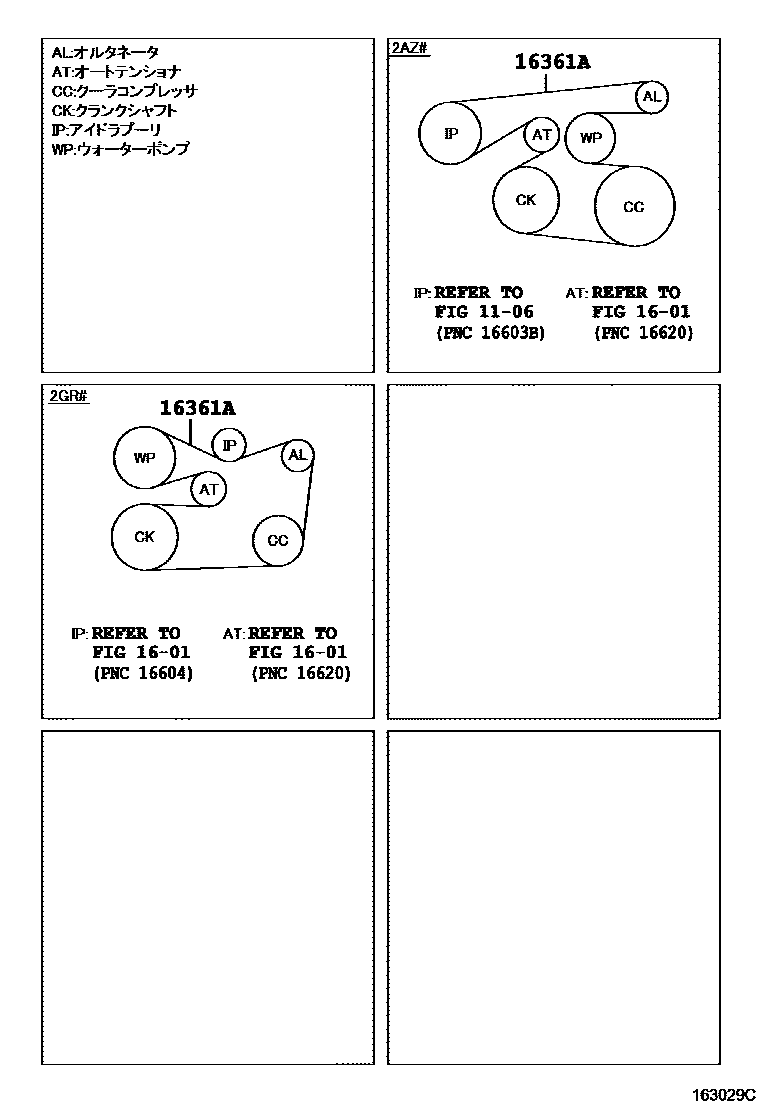

16361ABELT, V(FOR FAN & ALTERNATOR)

main99367-C1550i200708-200912

main90916-02652supersedes 90916-02599i201011

main90916-02653supersedes 90916-02599i201011

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota BLADE

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota BLADE. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
